Multi-gas Detector X-am 5600 with Charging Technology
$16.22*
Available
Key Features and Benefits of the Multi-gas Detector X-am 5600
The Dräger X-am 5600 Set is a robust, water-tight multi-gas detector designed for personal air monitoring. The set includes the X-am 5600 multi-gas detector, a charging module Dräger X-am 1/2/5x00, and a plug-in power supply Dräger 12 V/1.2 A (compatible with 1 X-am 7000 or 2 X-am 2/5x00 devices). It also features an optional external pump for use with a hose up to 45 m long, and is water and dust protected according to IP 67. Desired sensors are selected separately from the available sensor range.
| Device type: | X-am 5600 |
|---|---|
| Rental Advanced: | Yes |
| Rental item or Consumable?: | Rental items |
Included in the delivery
All items pictured below are provided with this order. Some components (e.g. sensors) can also be rented if needed.

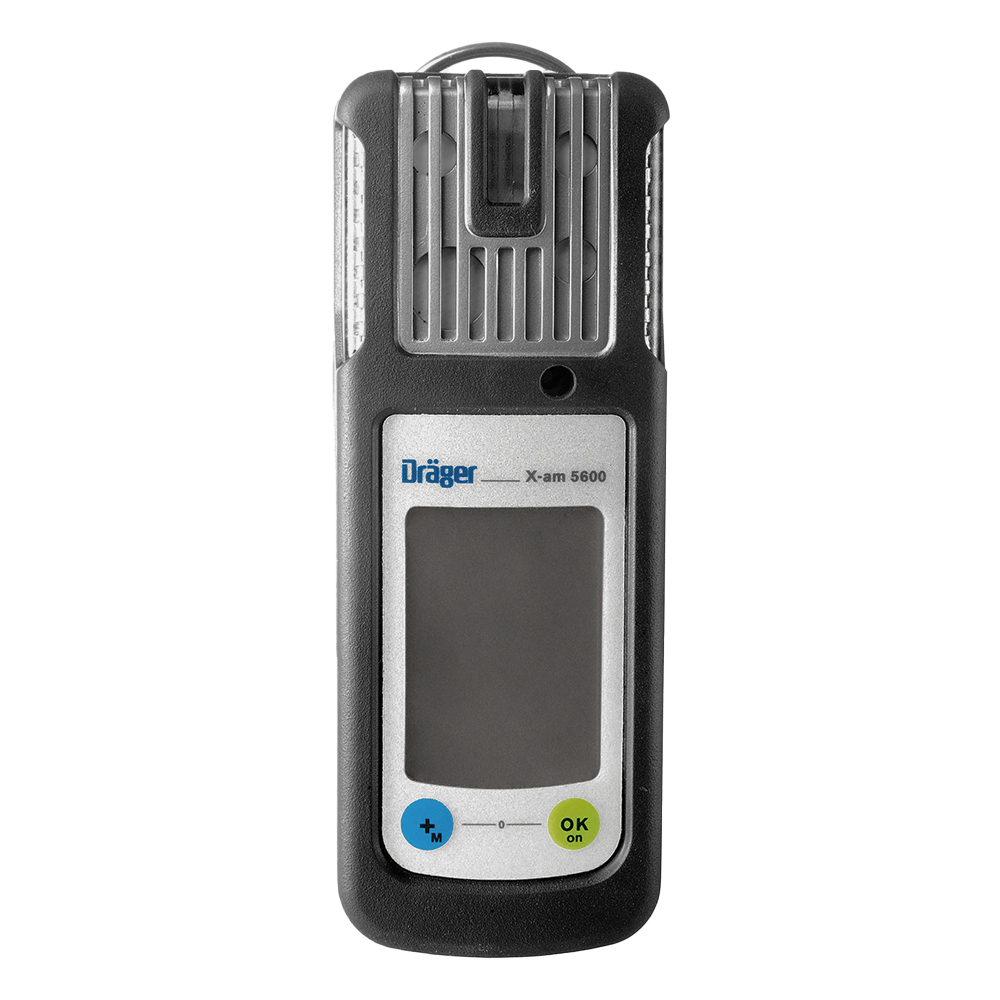

Dräger X-am 5600

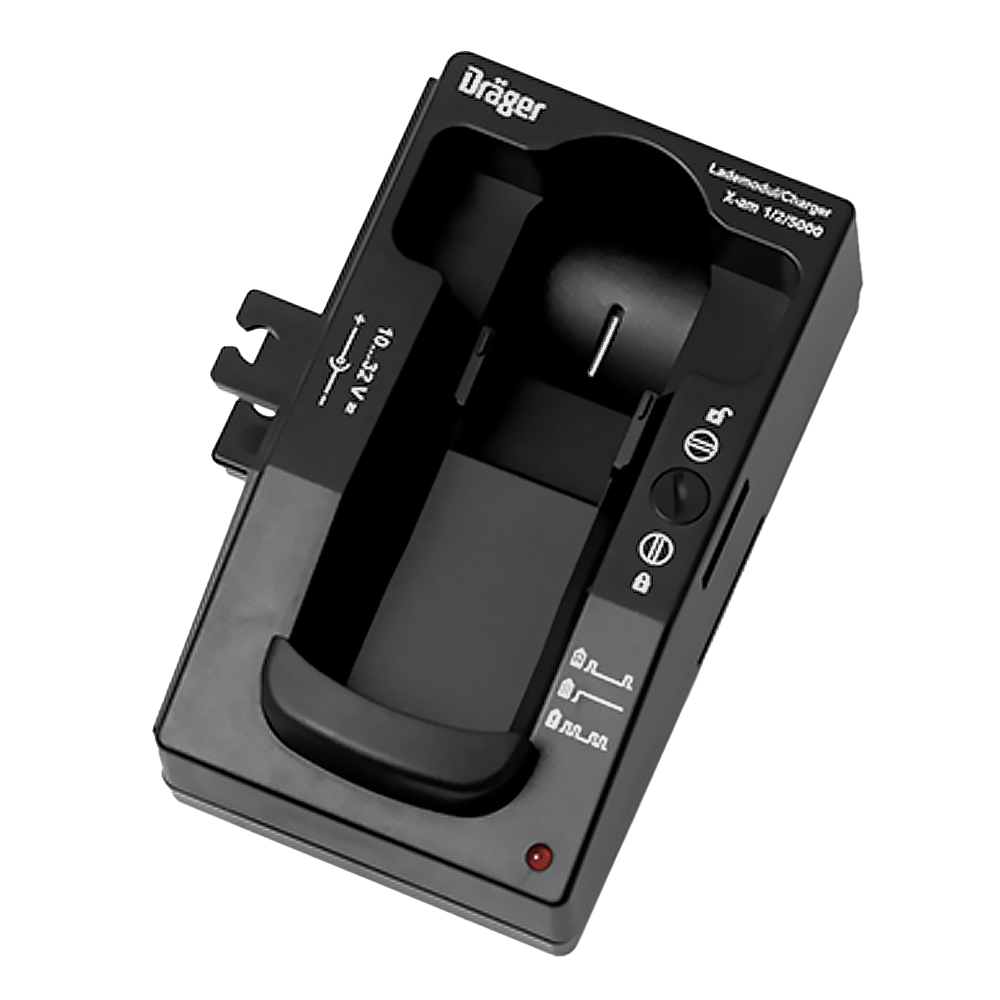

Charging module Dräger X-am 1/2/5x00

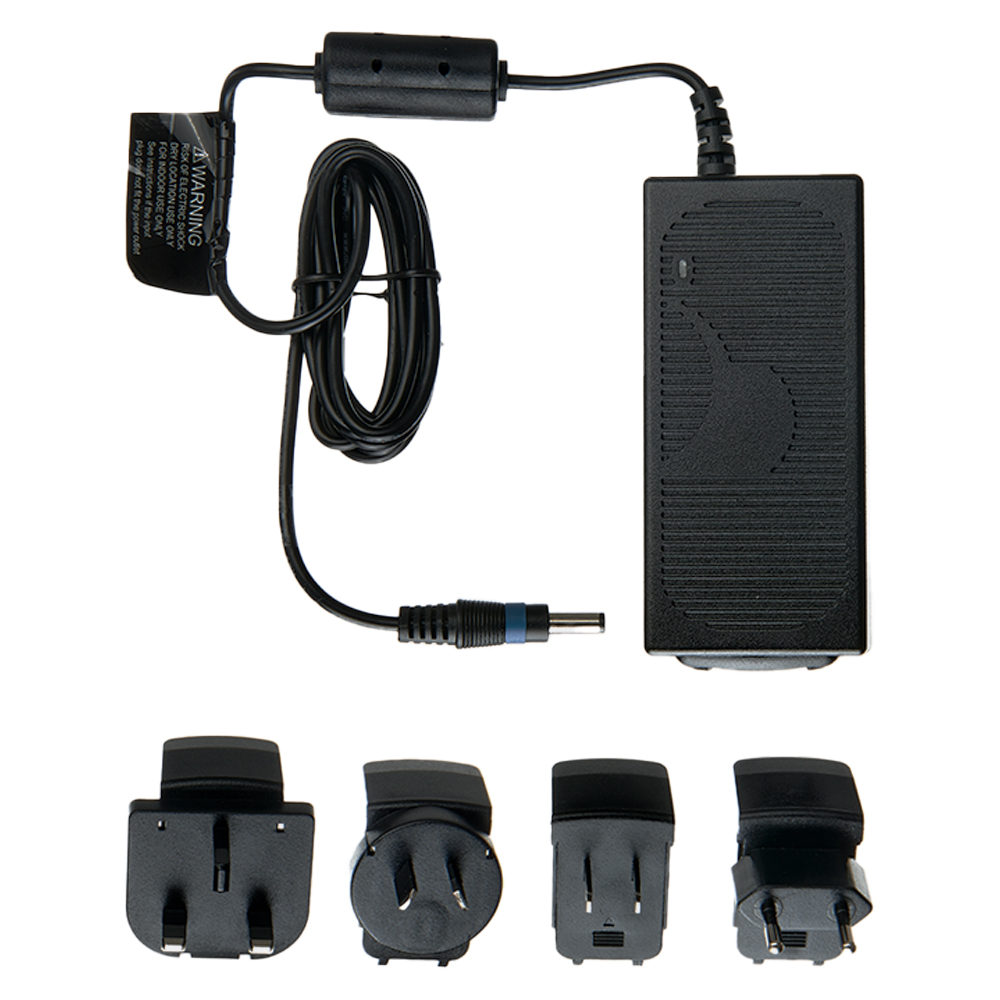

Plug-in power supply Dräger 12 V/1.2 A (for 1 X-am 7000 or 2 X-am 2/5x00)

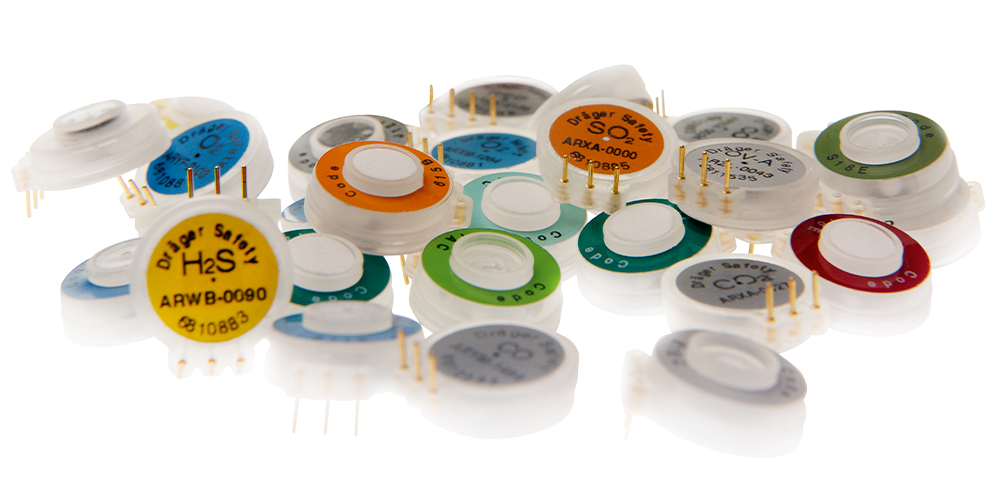

Choose a Sensor to Complete Your Order
Select at least one sensor from the Available Sensors section to place this order.
Choosing the Right Rental Product for Your Application
Selecting the ideal rental device helps ensure you get the best protection and efficiency for your specific work environment. Consider the types of hazards present, the number of gases to be monitored, and how frequently you’ll need the equipment. Our range of rental products offers flexible solutions - whether you require short-term coverage for a one-off project or long-term use on complex sites. Expert consultation and tailored support are available to help you find the right match for your application.
Key Advantages of the X-am 5600
- Simultaneous measurement of up to six gases, covering toxic, flammable, and asphyxiating hazards
- Innovative infrared and electrochemical sensor technology for reliable detection
- Ergonomic, single-handed operation and compact, lightweight design
- Rugged, water- and dustproof construction (IP67) with integrated rubber boot for use in harsh environments
- Charging module and power supply included for convenient recharging and continuous readiness
- Flexible sensor options for a wide range of applications
- Easy calibration and fleet management with the X-dock station
- Ideal for personal monitoring, confined space entry, leak detection, and clearance measurements in various industries (chemical, petrochemical, oil and gas, utilities, mining, tunneling)
Further information about the product can be found on our website.
Application Areas for Portable Gas Detection
Portable gas detection instruments are subject to very diverse requirements. Different application areas require solutions tailored to the measurement task, which also take into account the respective ambient conditions.
It is generally possible to distinguish between the following application areas:

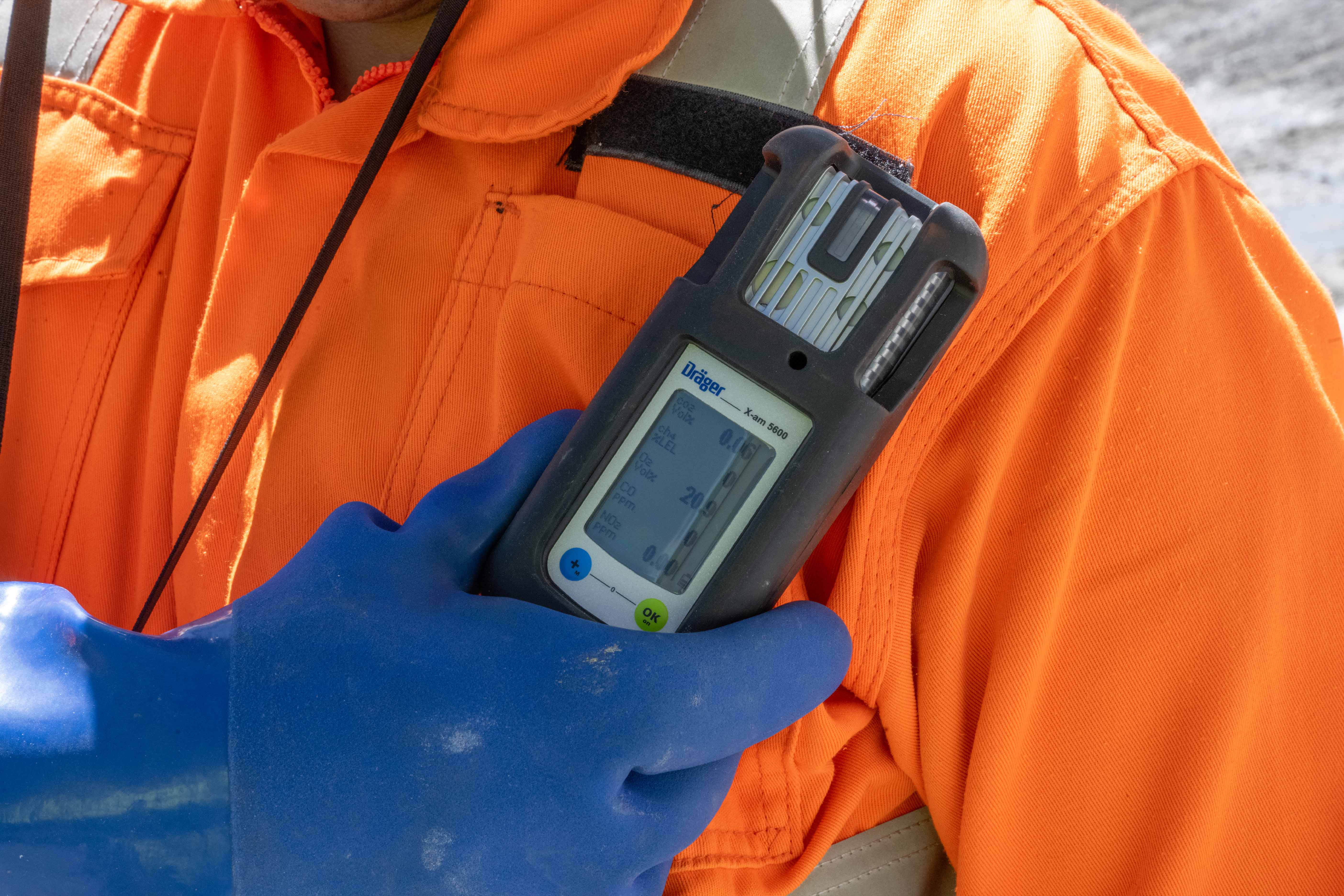

Personal monitoring
These devices are designed to warn the wearer about gas risks in the immediate vicinity. For this reason, they are usually worn on work clothing. The basic requirements that these units therefore have to fulfill are wearing comfort, durability, and reliability. Continuously measuring single-gas and multi-gas instruments are suitable for this kind of work.
Area monitoring
In contrast to the personal gas detector area monitors will be placed at central or critical locations to monitor workspaces optimally and independently from persons. For this, the basic requirements are robustness, stability and excellent alarm awareness (optical and acoustic) as well as a longest possible battery runtime. Increased security level can be achieved by connecting the area monitors to wireless alarm chains and by transferring the measurement values from instrument to instrument as well as to mobile terminals.
Confined space entry
Maintenance and repair work often require people to climb into confined spaces. These areas of work can be especially dangerous because of the lack of space, the lack of ventilation, and the presense or development of hazardous substances. A clearance measurement is required before entry. Multi-gas instruments are used together with corresponding pumps and accessories such as hoses and probes. After a successful measurement where no hazards have been found, the same instruments can be used for continuous personal monitoring while working in the confined space.
Leak detection
Leakages can occur wherever gases or liquids are stored or transported. It is important to identify leakages quickly so that the appropriate measures can be taken to avert harm to people, the environment, and the facility. Detection devices combined with corresponding pumps must be able to respond quickly so as to detect small changes in concentration. High levels of reliability are another minimum requirement for these measuring instruments.
Calibration and Bump Testing Functionality tests
Required function tests before each use are performed using the Dräger test and calibration stations along with the corresponding test gases.
If you wish for a customized alarm threshold configuration and/or an adjustment of the Ex sensor, please specify the alarm thresholds and the target gas calibration at the end of the ordering process in the comment field.
You can also rent bump test equipment for temporary assignments, projects or additional testing tasks. Click here to see our range of products.
Associated Rental Items
Discover related equipment and accessories that complement this gas monitor or offer similar functions, helping you find the right tools for your specific safety needs.
