Multi-gas Scanner X-pid 9500 Complete Package
Key Features and Benefits of the Multi-gas Scanner X-pid 9500 Complete Package
The Dräger X-pid 9500 Set is a photoionization detector designed for the selective measurement of carcinogenic hazardous substances, such as benzene, butadiene, and other volatile organic compounds, even in low concentrations. It is especially suitable for use in containers, confined spaces, and silos. The set includes the X-pid 9500 detector, a carrying case with inlay, a standard control valve, a gas adapter, a control unit with charging cable, a telescopic probe, and a float probe with a 3 m hose. Required test gas must be ordered separately.
| Rental Advanced: | Yes |
|---|---|
| Rental item or Consumable?: | Rental items |
Included in the delivery
All items pictured below are provided with this order. Some components (e.g. sensors) can also be rented if needed.

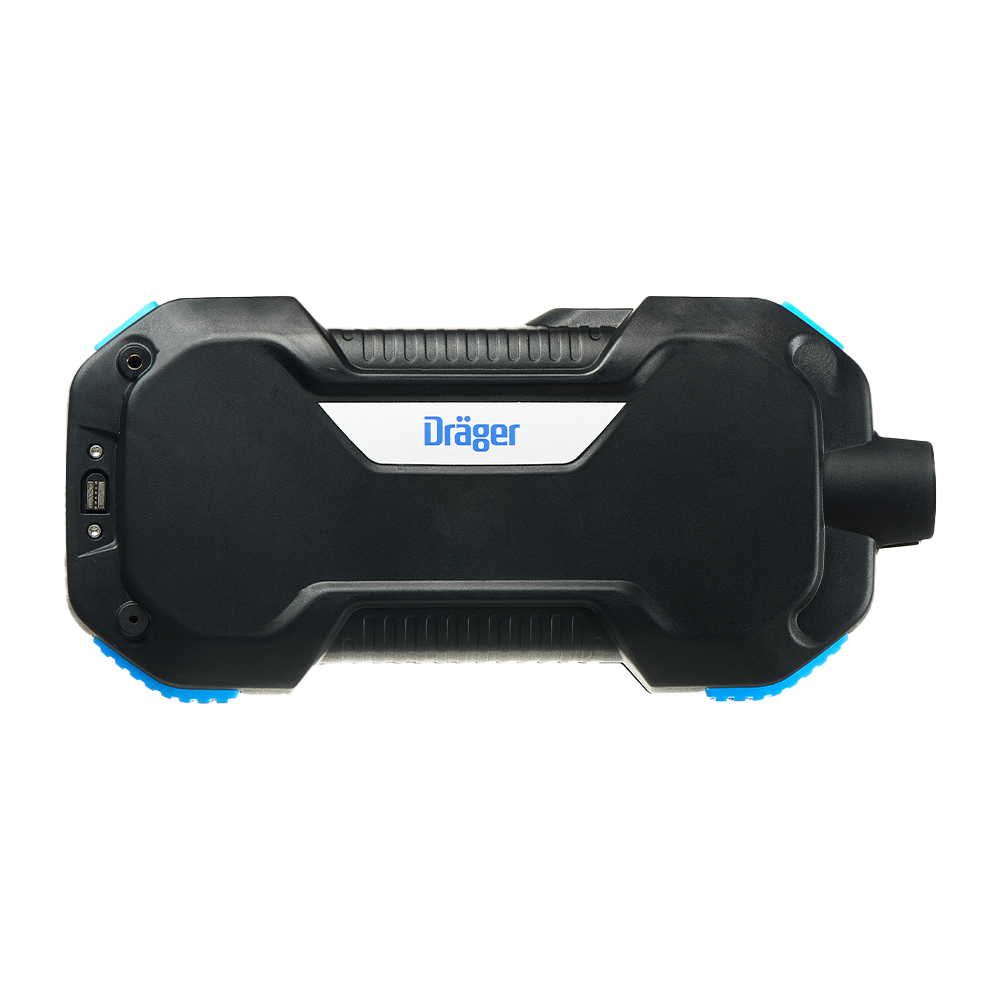

Dräger X-pid 9500
Dräger Case with Inlay for X-pid 9x00 and X-pid 9500 Control Unit incl. Charging Cable, Version 2.0 (Large)
_KIT6_US.jpg?ts=1787823556)

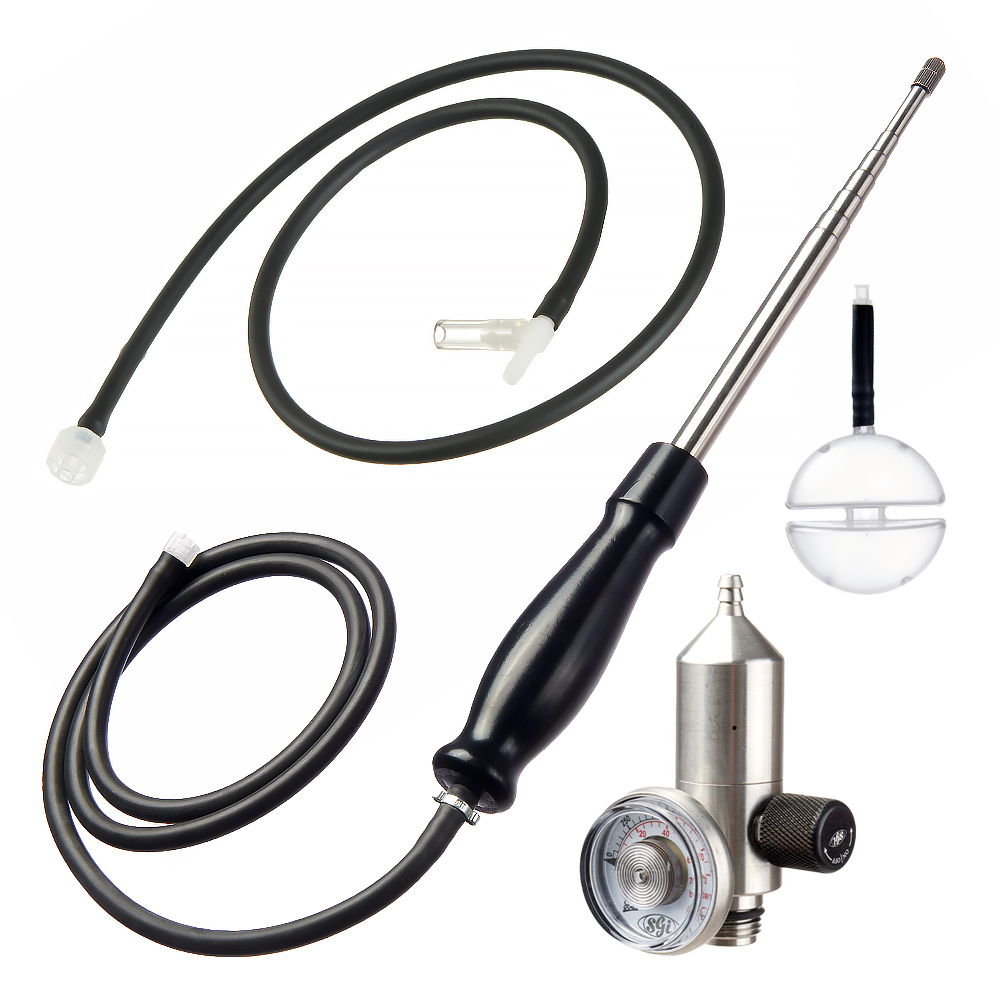

Standard Control Valve 0.5 LPM, Gas Adapter, Telescopic Probe ES 150, Dräger Float Probe (without hose), Hose, 3m, Tygon, PTFE
,-Hose,-3m,-Tygon,-PTFE_KIT6_US.jpg?ts=1787823556)

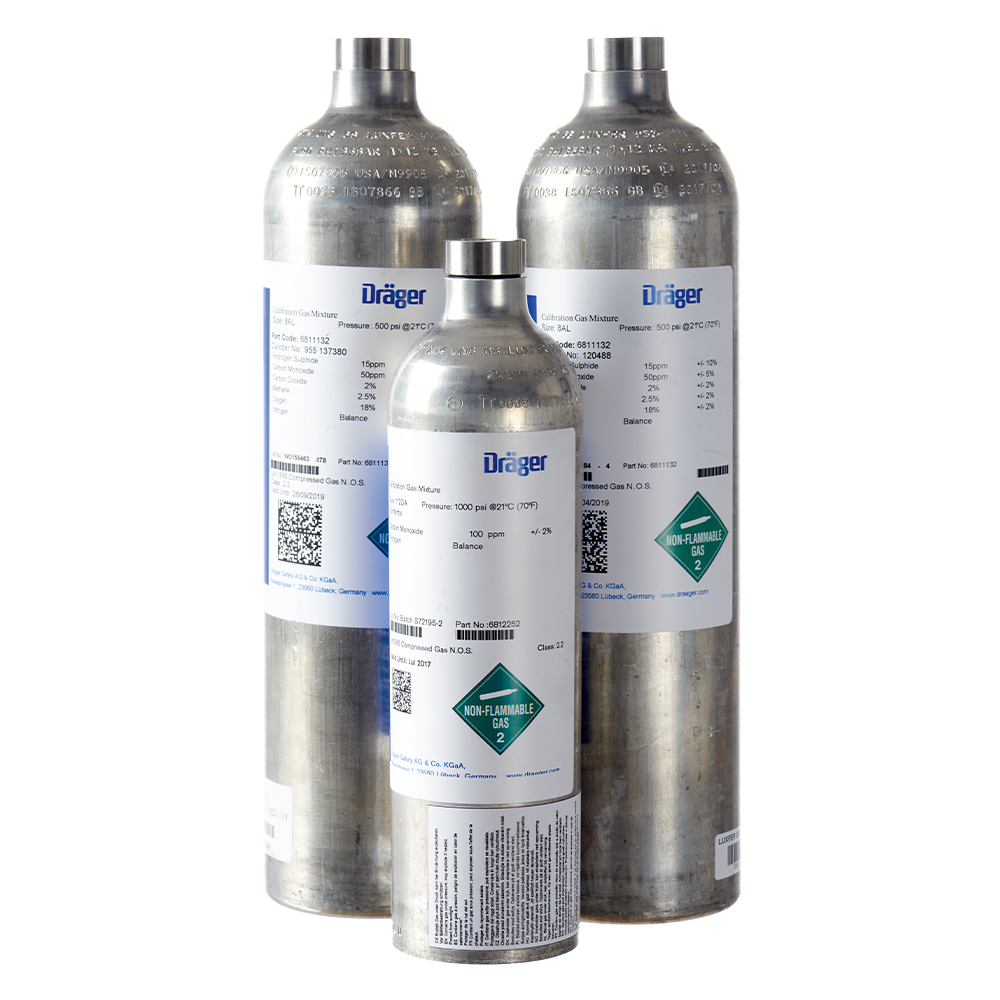

Please order the required test gas additionally
Choosing the Right Rental Product for Your Application
Selecting the ideal rental device helps ensure you get the best protection and efficiency for your specific work environment. Consider the types of hazards present, the number of gases to be monitored, and how frequently you’ll need the equipment. Our range of rental products offers flexible solutions - whether you require short-term coverage for a one-off project or long-term use on complex sites. Expert consultation and tailored support are available to help you find the right match for your application.
Key Advantages of the X-pid 9500
- Selective measurement of carcinogenic hazardous substances such as benzene and butadiene, even in low concentrations, with benzene measurable from as low as 50 ppb
- High selectivity through technology that separates individual compounds in mixed gases, enabling compound-specific measurement of benzene even when other VOCs like toluene and xylene are present
- Lab-quality measurement results based on established gas chromatography (GC) and photoionization detection (PID) technologies
- Two measurement modes: "Seeker" for wide-range pre-testing and localizing measurement points, and "Analysis" for selective, compound-specific measurement
- Fast performance with no preparation required, ready to use after a brief start-up phase, with benzene measurements in "Analysis" mode completed in as little as 30 seconds
- Reliable performance under tough conditions, as the sensor unit maintains a constant temperature above ambient and separates water vapor to minimize the influence of temperature and humidity
- Intuitive handling via a mobile app on an explosion-proof smartphone with a large touchscreen and familiar user interface
- No consumables required per measurement, reducing operating costs for users with high measurement needs
- Simple functional test and calibration completed within about two minutes using test gases isobutylene and toluene, with step-by-step user guidance
- Compatible with GasVision 7 software for professional visualization and evaluation of data logger results, including Excel-based export for further analysis
Application Areas for Portable Gas Detection
Portable gas detection instruments are subject to very diverse requirements. Different application areas require solutions tailored to the measurement task, which also take into account the respective ambient conditions.
It is generally possible to distinguish between the following application areas:
Personal monitoring
These devices are designed to warn the wearer about gas risks in the immediate vicinity. For this reason, they are usually worn on work clothing. The basic requirements that these units therefore have to fulfill are wearing comfort, durability, and reliability. Continuously measuring single-gas and multi-gas instruments are suitable for this kind of work.
Area monitoring
In contrast to the personal gas detector area monitors will be placed at central or critical locations to monitor workspaces optimally and independently from persons. For this, the basic requirements are robustness, stability and excellent alarm awareness (optical and acoustic) as well as a longest possible battery runtime. Increased security level can be achieved by connecting the area monitors to wireless alarm chains and by transferring the measurement values from instrument to instrument as well as to mobile terminals.

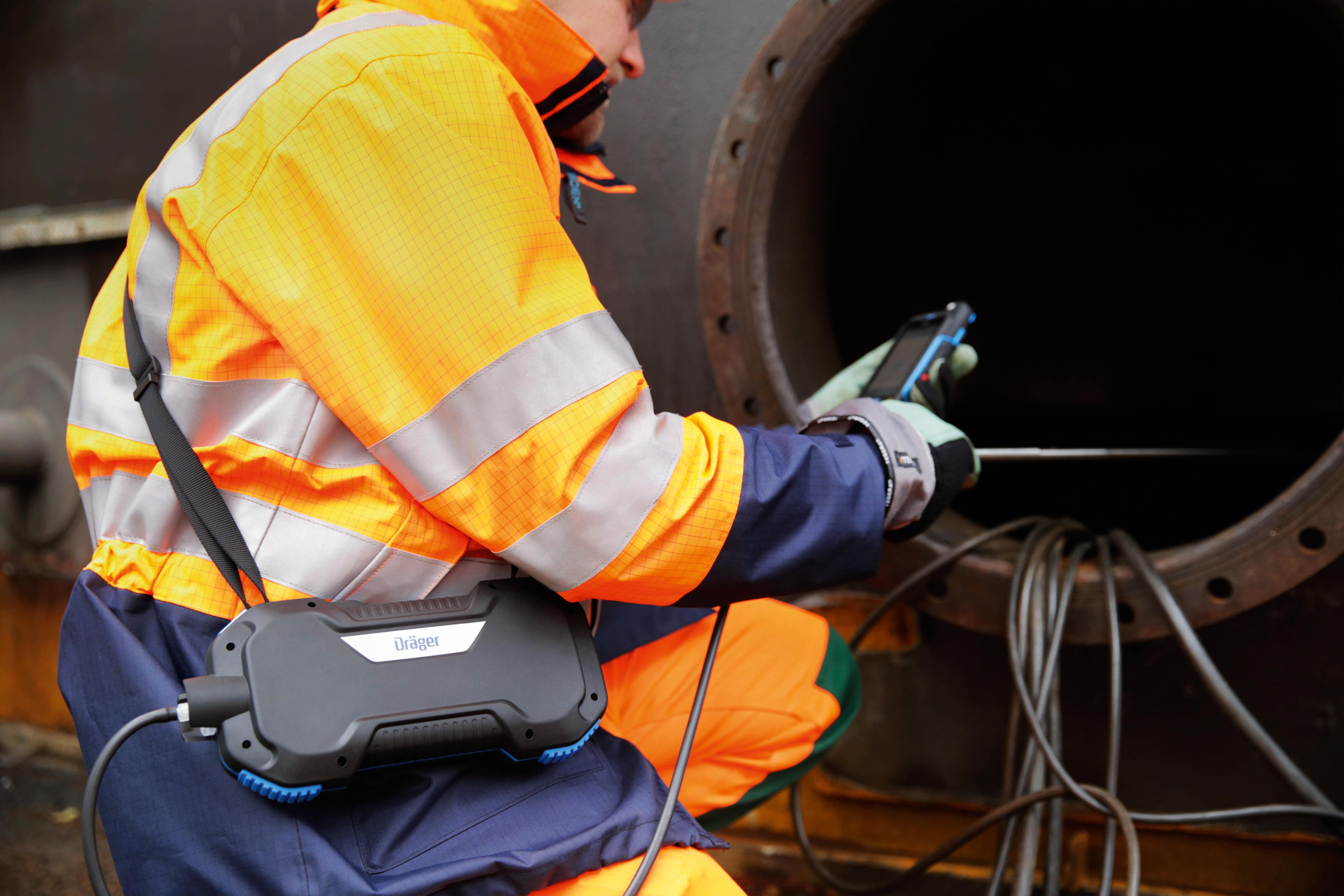

Confined space entry
Maintenance and repair work often require people to climb into confined spaces. These areas of work can be especially dangerous because of the lack of space, the lack of ventilation, and the presense or development of hazardous substances. A clearance measurement is required before entry. Multi-gas instruments are used together with corresponding pumps and accessories such as hoses and probes. After a successful measurement where no hazards have been found, the same instruments can be used for continuous personal monitoring while working in the confined space.
Leak detection
Leakages can occur wherever gases or liquids are stored or transported. It is important to identify leakages quickly so that the appropriate measures can be taken to avert harm to people, the environment, and the facility. Detection devices combined with corresponding pumps must be able to respond quickly so as to detect small changes in concentration. High levels of reliability are another minimum requirement for these measuring instruments.
Calibration and Bump Testing Functionality tests
Required function tests before each use are performed using the Dräger test and calibration stations along with the corresponding test gases.
If you wish for a customized alarm threshold configuration and/or an adjustment of the Ex sensor, please specify the alarm thresholds and the target gas calibration at the end of the ordering process in the comment field.
You can also rent bump test equipment for temporary assignments, projects or additional testing tasks. Click here to see our range of products.
