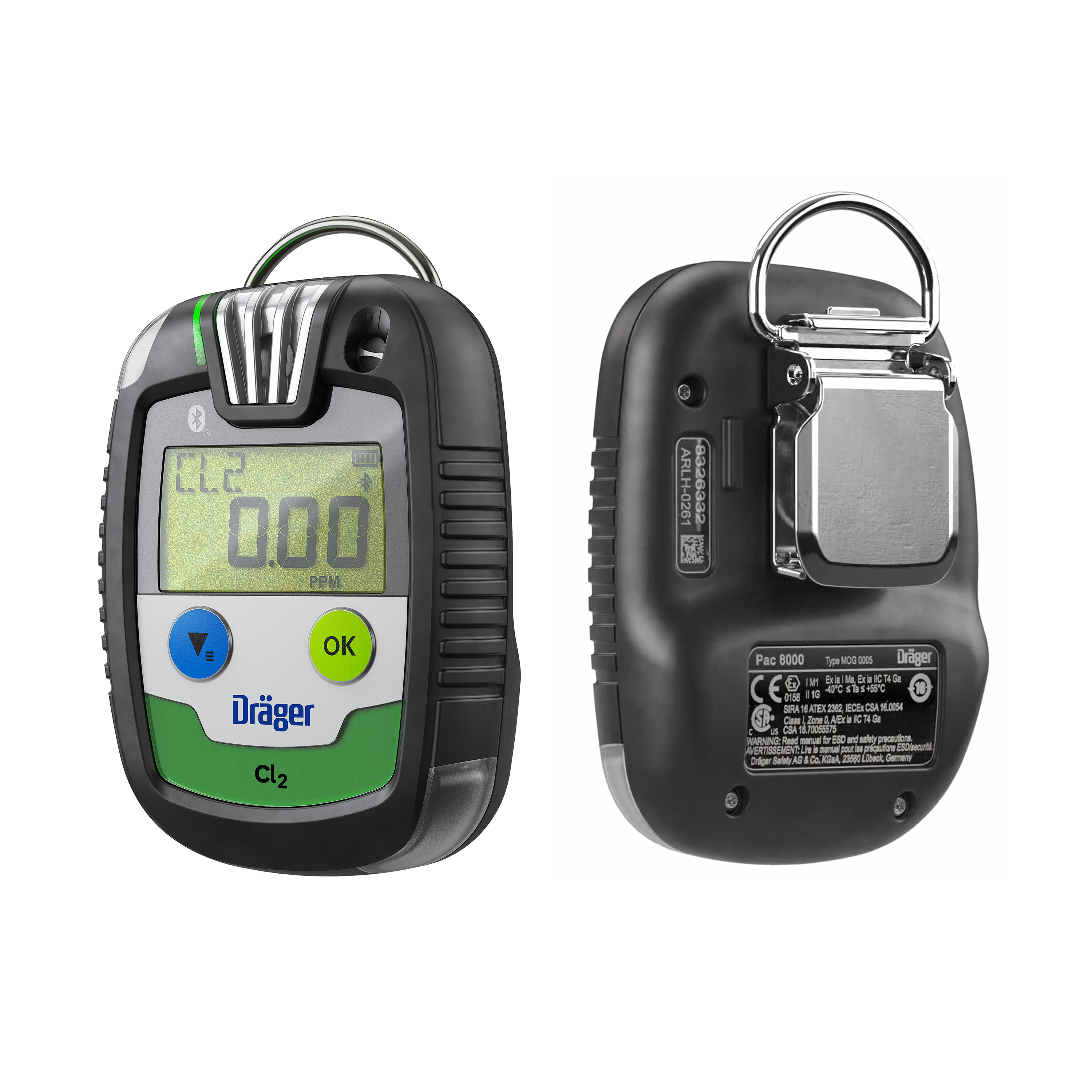

The gas warning device Pac 8000 Cl2 reliably and accurately detects the concentration of chlorine gas and warns at dangerous gas concentrations.

Single gas measuring device for personal measurement
XXS sensor technology with high reaction speed and membrane filter
Standard measurement range: 0 - 20 ppm, A1/A2 alarm thresholds: 0.5/1 ppm

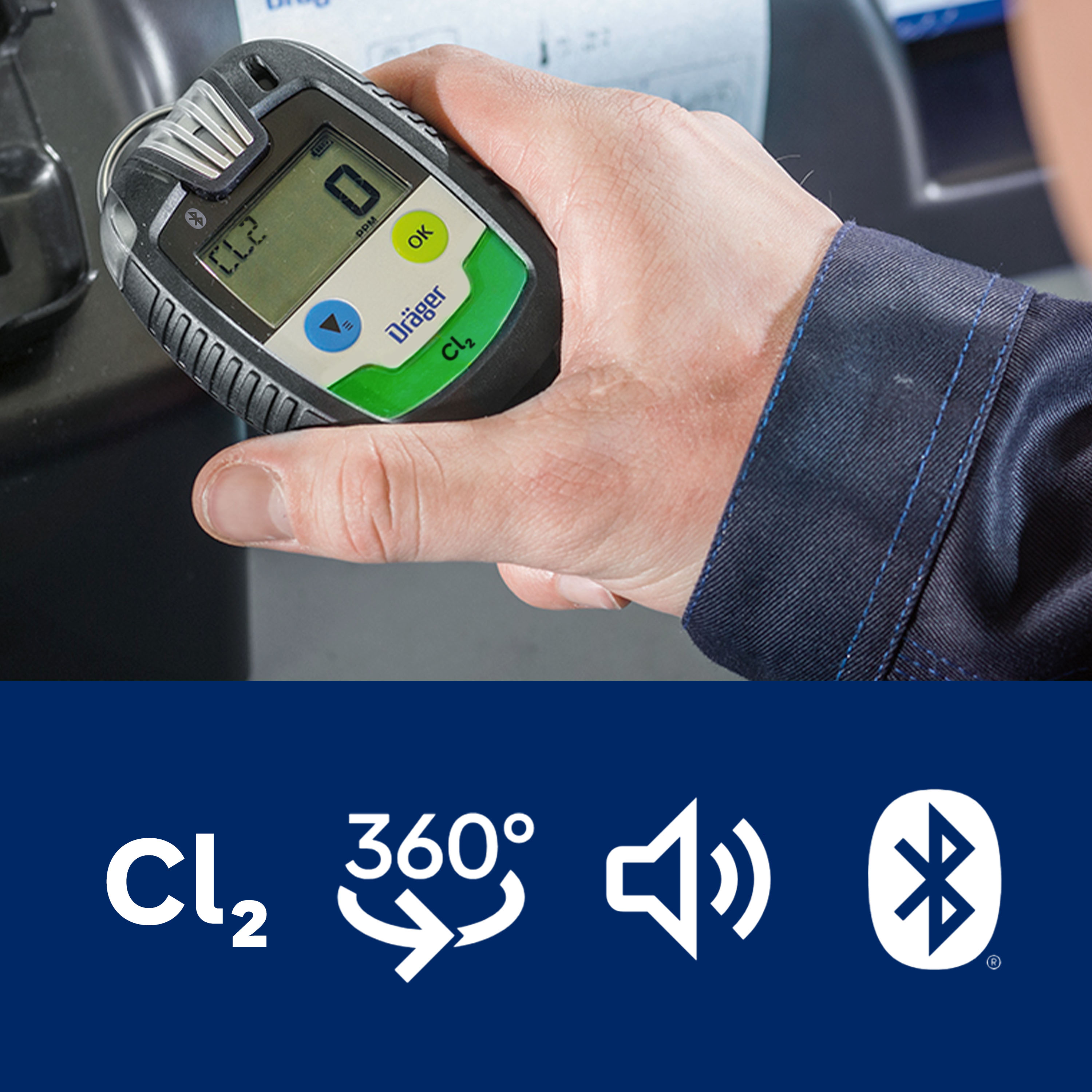

360° alarm signal, acoustic (90 dB) and visual
The gas detector features a robust, handy housing for use under extreme conditions
Large and user-friendly display with bright backlighting
Storage of concentrations and events with date and time

Conduct the prescribed function tests before each use with the Dräger test and calibration stations and the associated test gases. Basis for the function tests are the information sheets T021 / T023 (DGUV Information 213-056 or DGUV Information 213-057). Further information can be found here.

If you wish for an individual alarm threshold configuration, please specify the alarm thresholds at the end of the ordering process in the comment field.

Further information about the product can be found on our website. Please follow the link.

Technical Data - Dräger Sensor XXS Cl2

Detection limit	0.05 ppm
Resolution	0.05 ppm
Measurement range/Relative sensitivity	0 to 20 ppm Cl2 (Chlorine) → 1.00 0 to 20 ppm F2 (Fluorine) → 1.00 0 to 20 ppm Br2 (Bromine) → 1.00 0 to 20 ppm ClO2 (Chlorine dioxide) → 0.60
Response time	≤ 30 seconds (t90)
Precision sensitivity	≤ ± 2 % of the measured value
Long-term drift (at 20 °C)	Zero point: ≤ ± 0.2 ppm/year Sensitivity: ≤ ± 2 % of the measured value/month
Stabilization time	≤ 30 minutes
Environmental conditions	Temperature: (-40 to 50) °C (-40 to 122) °F Humidity: (10 to 90) % rH Pressure: (700 to 1300) hPa
Temperature influence	Zero point: ≤ ± 0.05 ppm Sensitivity: ≤ ± 5 % of the measured value
Humidity influence	Zero point: no influence Sensitivity: ≤ ± 0.4 % of the measured value/% rH
Test gas	approx. 1 to 18 ppm Cl2

Relevant Cross Sensitivities - Dräger Sensor XXS Cl2

The values stated in the table are indicative and apply to new sensors. The indicated values may vary by ±30%. The sensor can also be sensitive to other gases (data upon request from Dräger). Gas mixtures can be displayed as a sum. Gases with negative sensitivity can offset a positive display of Cl2. It should be checked whether gas mixtures are present.

Gas/Vapor	Concentration	Display in ppm Cl2
Ammonia (NH3)	50 ppm	no influence
Hydrogen chloride (HCl)	20 ppm	≤ 0.5
Hydrogen cyanide (HCN)	60 ppm	no influence
Ethanol (C2H5OH)	250 ppm	no influence
Acetylene (C2H2)	100 ppm	no influence
Isobutylene ((CH3)2CCH2)	100 ppm	no influence
Carbon dioxide (CO2)	10 vol.-%	no influence
Carbon monoxide (CO)	1000 ppm	no influence
Methane (CH4)	0.9 vol.-%	no influence
Ozone (O3)	1 ppm	no influence
Phosphine (PH3)	1 ppm	no influence
Sulfur dioxide (SO2)	10 ppm	≤ 1 (–)
Hydrogen sulfide (H2S)	10 ppm	≤ 0.6 (–)
Nitrogen dioxide (NO2)	10 ppm	no influence
Nitric oxide (NO)	20 ppm	no influence
Hydrogen (H2)	1000 ppm	no influence

(-) negative sign of deviation
