Pac 8000 Single Gas Monitor for Nitrogen dioxide (NO2) US
The gas warning device Pac 8000 NO2 reliably and accurately detects the concentration of nitrogen dioxide and warns of dangerous gas concentrations.
- Single gas measuring device for personal measurement
- XXS sensor technology with high reaction speed and membrane filter
- Standard measuring range: 0 - 50 ppm, A1/A2 alarm thresholds: 5/10 ppm

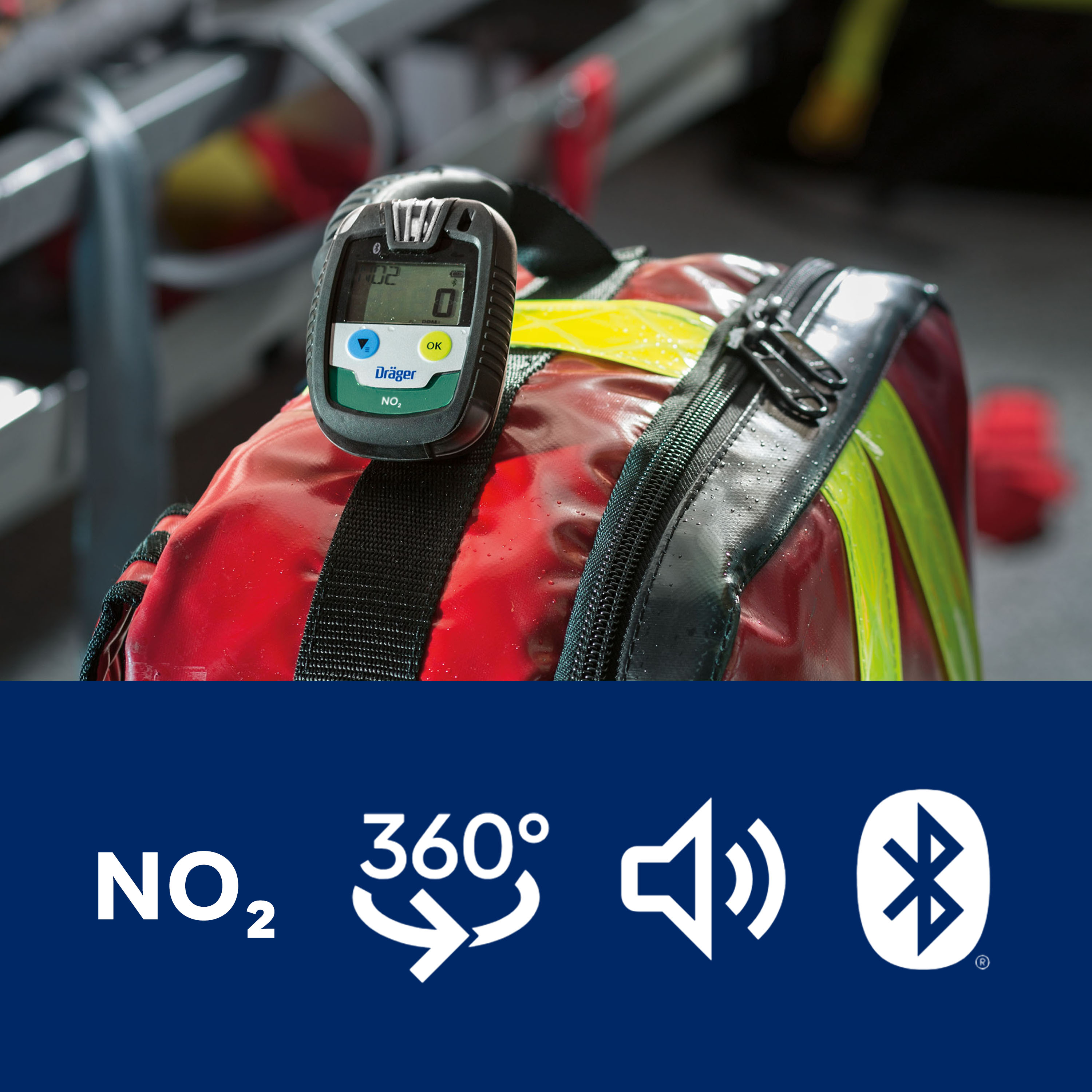

- 360° alarm signal, acoustic (90 dB) and visual
- The gas warning device has a robust, grippy housing for use under extreme conditions

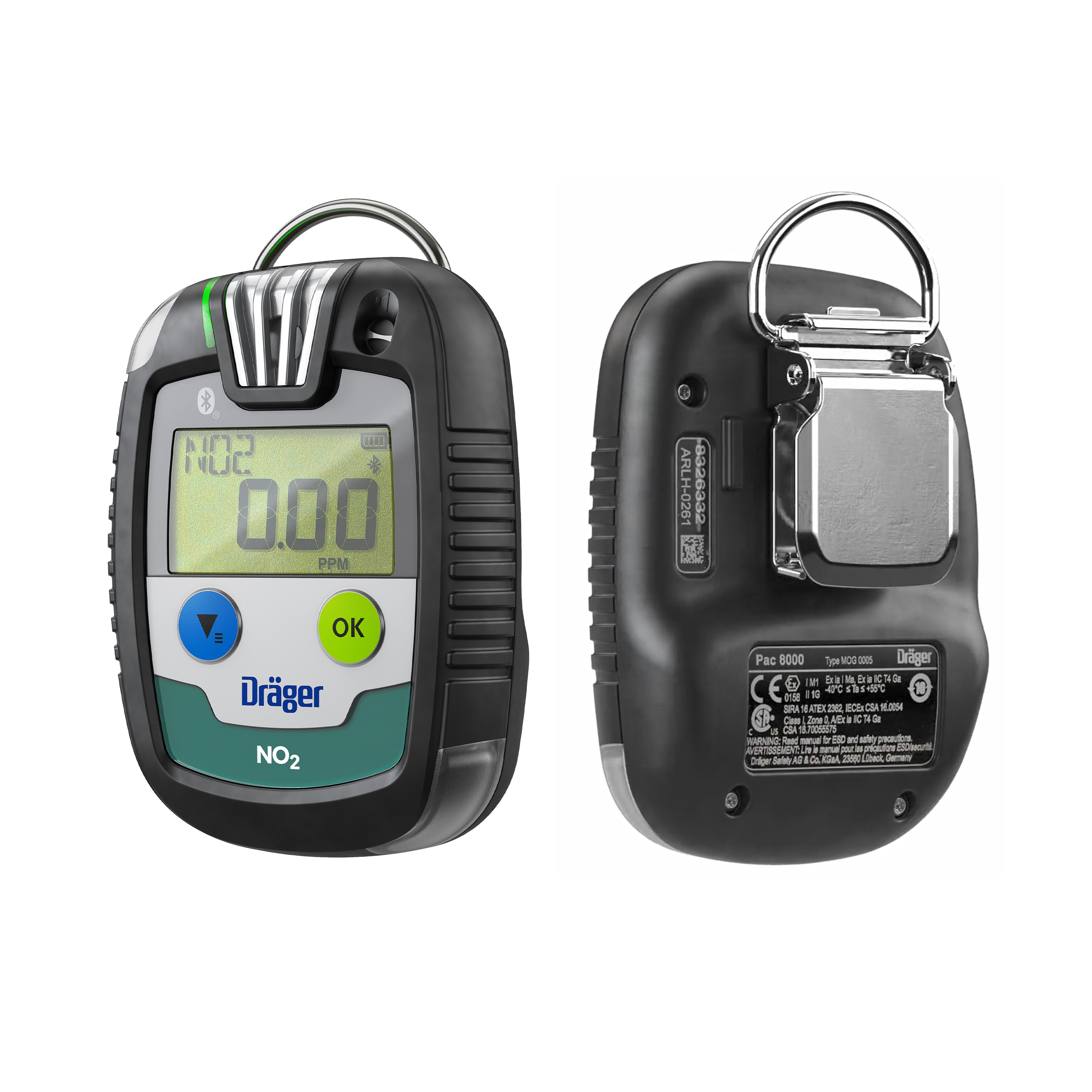

- Large and user-friendly display with bright backlight
- Storage of concentrations and events with date and time
Conduct the prescribed functional tests before each use with the Dräger test and calibration stations and the associated test gases. The basis for the functional tests are the information sheets T021 / T023 (DGUV Information 213-056 or DGUV Information 213-057). Further information can be found here.
If you wish to configure individual alarm thresholds, please indicate the alarm thresholds in the comment field at the end of the order process.
For further information about the product, visit our website. Please follow the link.
Technical Data - Dräger Sensor XXS NO2
| Detection Limit | 0.04 ppm |
|---|---|
| Resolution | 0.02 ppm |
| Measuring Range | 0 to 50 ppm NO2 (nitrogen dioxide) |
| Response Time | ≤ 15 seconds (t50) |
| Precision Sensitivity | ≤ ± 3 % of measured value |
| Long-term Drift (at 20 °C, 50% RH) |
|
| Run-in Time | ≤ 120 minutes |
| Environmental Conditions |
|
| Temperature Influence |
|
| Humidity Influence |
|
| Test Gas | approx. 0.5 to 45 ppm NO2 |
Relevant Cross Sensitivities - Dräger Sensor XXS NO2
The values given in the table are guidelines and apply to new sensors. The specified values may vary by ±30%. The sensor may also be sensitive to other gases (data on request from Dräger). Gas mixtures can be displayed as a sum. Gases with negative sensitivity can negate a positive display of NO2. It should be checked whether gas mixtures are present.
| Gas/Vapor | Concentration | Display in ppm NO2 |
|---|---|---|
| Ammonia (NH3) | 30 ppm | no influence |
| Arsine (AsH3) | 0.5 ppm | no influence |
| Chlorine (Cl2) | 1 ppm | ≤ 1.5 |
| Chlorine dioxide (ClO2) | 1 ppm | ≤ 1.5 |
| Sulfur dioxide (SO2) | 1 ppm | ≤ 0.12 (–) |
| Hydrogen sulfide (H2S) | 1 ppm | ≤ 0.03 (–) |
| Ozone (O3) | 0.5 ppm | ≤ 1 |
| Carbon monoxide (CO) | 2000 ppm | no influence |
(-) negative deviation sign
| Rental Advanced: | Yes |
|---|---|
| Rental item or Consumable?: | Rental items |
| Sensors: | NO2 |
