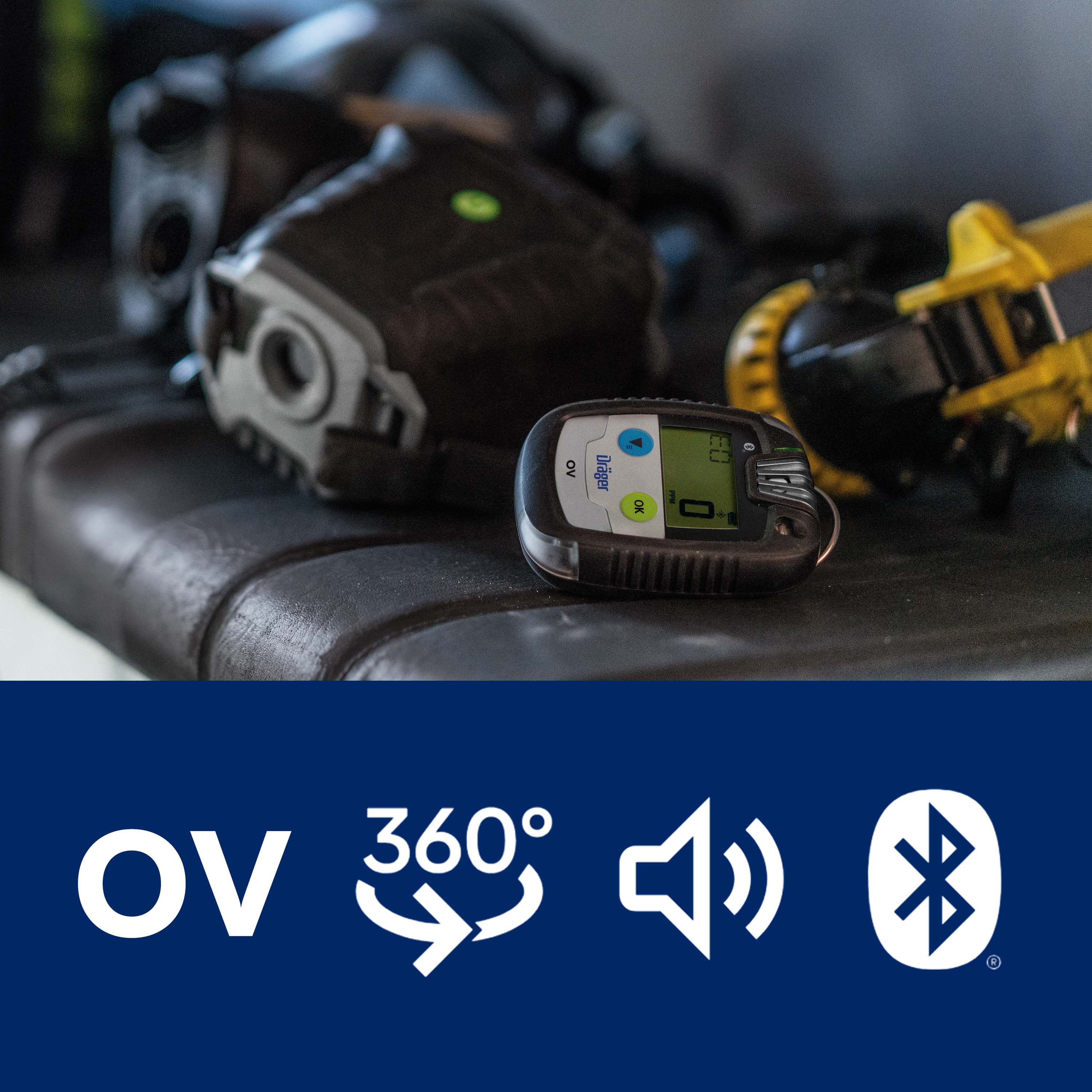

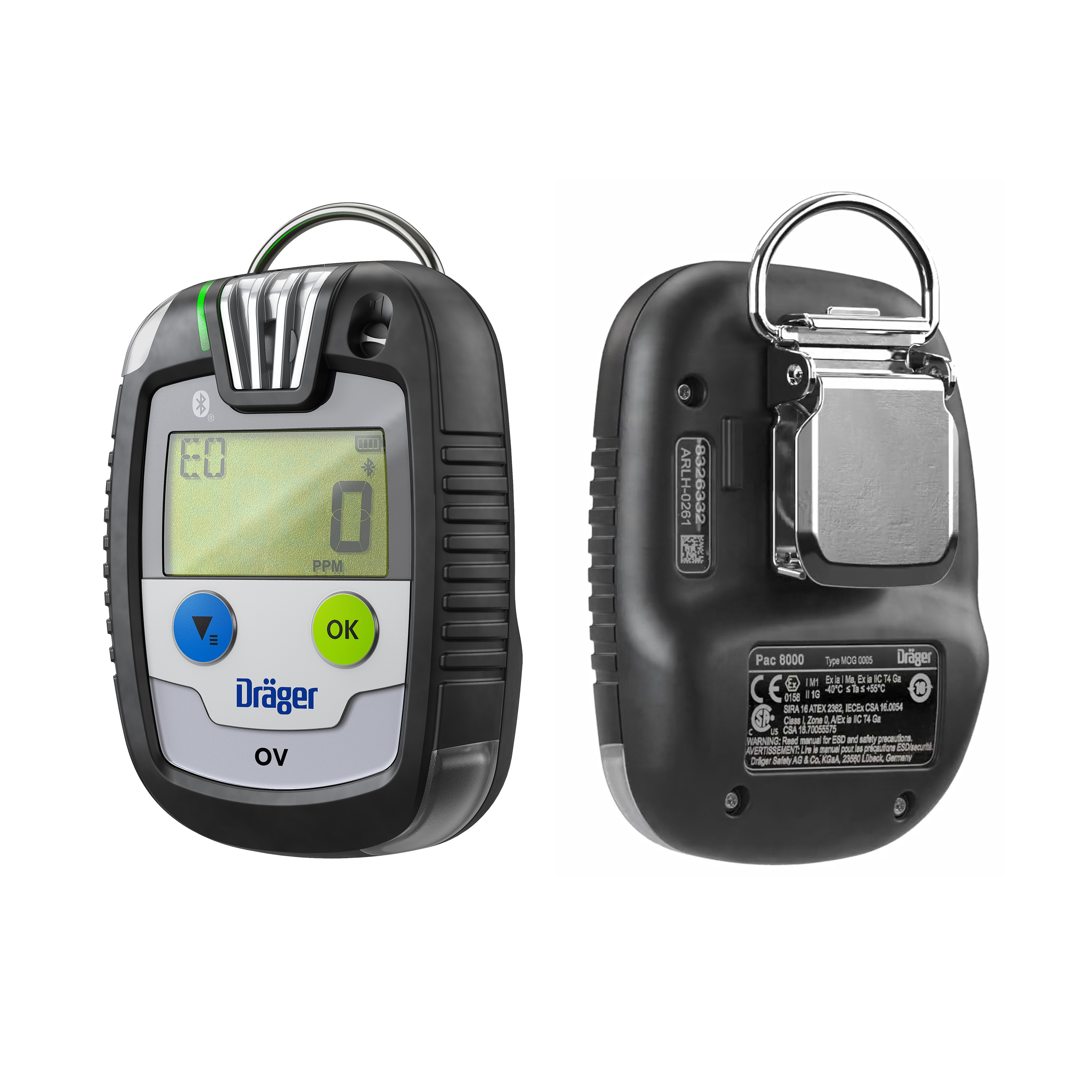

Pac 8000 Single Gas Monitor for Organic Compounds (OV)

SRM11914_US

Rental fee per Day

$7.30*

excluding VAT and shipping costs

Available

Transit Zone

Select rental period:

Please note: if you need the device quicker, there is an option to choose Express Delivery in the checkout. If you should require a specific device configuration, you can also leave a comment during checkout.

The gas detection device Pac 8000 OV detects the concentration of substances Ethylene Oxide, Propylene Oxide, Ethene, Propene, Vinyl Chloride, Methanol, Butadiene, Formaldehyde, Iso-Propanol, Tetrahydrofuran, 1-Chlor-2,3 Epoxy Propane, Styrene, Methyl Methacrylate and warns in case of dangerous gas concentration.

Reliable single gas meter for personal measurement
XXS sensor technology with high response speed and membrane filter
Standard measurement range: 0 - 200 ppm
360° alarm signal, acoustic (90 dB) and visual
The gas detector has a robust, handy housing for use under extreme conditions
Large and user-friendly display with bright backlighting
Storage of concentrations and events with date and time

Perform the mandatory functional tests before each use with Dräger test and calibration stations as well as the associated test gases. The basis for the functional tests are the data sheets T021 / T023 (DGUV Information 213-056 or DGUV Information 213-057). Further information can be found here.

If you would like a custom alarm threshold configuration, please specify the alarm thresholds in the comment field at the end of the ordering process.

Further information about the product can be found on our website. Please follow the link.

Technical Data - Dräger Sensor XXS OV

Detection Limit

0.5 ppm EO

Resolution

0.5 ppm EO

Measurement ranges, resolution/detection limit and relative sensitivity

Measurement Range	Gas	Resolution/Detection Limit	Relative Sensitivity to EO¹⁾
0 to 200 ppm	C2H4O (Ethylene Oxide)	0.5	1.00
0 to 200 ppm	C3H6O (Propylene Oxide)	0.5	≈ 0.85
0 to 100 ppm	C2H4 (Ethene)	0.5	≈ 0.60
0 to 100 ppm	C3H6 (Propene)	2	≈ 0.65
0 to 100 ppm	C2H3Cl (Vinyl Chloride)	0.5	≈ 0.60
0 to 200 ppm	CH3OH (Methanol)	0.5	≈ 0.50
0 to 100 ppm	CH2CHCH2 (Butadiene)	1	≈ 1.40
0 to 100 ppm	HCHO (Formaldehyde)	2	≈ 0.80
0 to 300 ppm	(H3C)2CHOH (Iso-Propanol)	2	≈ 0.35
0 to 200 ppm	C4H8O (Tetrahydrofuran)	1	≈ 0.80
0 to 100 ppm	C2H3OCH2Cl (1-Chlor-2,3 Epoxy Propane)	1	≈ 0.35
0 to 100 ppm	C6H5CHCH2 (Styrene)	1	≈ 0.70
0 to 100 ppm	H2CC(CH3)COOCH3 (Methyl Methacrylate)	1	≈ 0.40

Response Time

≤ 20 seconds (t50)

Precision Sensitivity

≤ ± 5 % of the measured value

Long-term Drift (at 20 °C (68 °F))

Zero Point: ≤ ± 5 ppm/year
Sensitivity: ≤ ± 2 % of the measured value/month

Run-in Time

≤ 18 hours

Ambient Conditions

Temperature: (-20 to 50) °C (-4 to 122) °F
Humidity: (30 to 90) % r. F.
Pressure: (700 to 1300) hPa

Temperature Influence

Zero Point: ± 2 ppm at (-20 to 40) °C (-4 to 104) °F
Zero Point: ± 0.5 ppm/K at (40 to 50) °C (104 to 122) °F
Sensitivity: ≤ ± 1 % of the measured value/K

Humidity Influence

Zero Point: No Influence
Sensitivity: ≤ ± 0.5 % of the measured value/% r. F.

Test Gas

approx. 3 to 12 EO test gas

Relevant Cross Sensitivities - Dräger Sensor XXS OV

The values provided in the table are reference sizes and apply to new sensors. The values given can vary by ±30%. The sensor can also be sensitive to other gases (data available on request from Dräger). Gas mixtures can be displayed as a sum. Gases with negative sensitivity can offset a positive OV display. It should be checked if gas mixtures are present.

Gas/Vapor	Chemical Symbol	Concentration	Display in ppm C2H4O
Acetaldehyde	CH3CHO	55 ppm	≤ 15
Acrylonitrile	H2CCHCN	80 ppm	≤ 5
Ammonia	NH3	100 ppm	No Influence
Benzene	C6H6	2000 ppm	No Influence
Butyraldehyde	C3H7CHO	50 ppm	≤ 17 ppm
Chlorine	Cl2	10 ppm	No Influence
Chlorobenzene	C6H5Cl	200 ppm	No Influence
Hydrochloric Acid	HCl	20 ppm	≤ 5
Hydrocyanic Acid	HCN	20 ppm	≤ 10
Dichloromethane	CH2Cl2	1000 ppm	No Influence
Diethyl Ether	(C2H5)2O	100 ppm	≤ 60
Dimethylformamide	HCON(CH3)2	100 ppm	No Influence
Acetic Acid	CH3COOH	100 ppm	No Influence
Ethane	C2H6	0.2 Vol.-%	No Influence
Ethanol	C2H5OH	250 ppm	≤ 150
Ethine	C2H2	100 ppm	≤ 150
Ethyl Acetate	CH3COOC2H5	100 ppm	No Influence
Ethylene Glycol	C2H6O2	50 ppm	≤ 35
Isobutene	(CH3)2CCH2	50 ppm	≤ 45
Carbon Dioxide	CO2	30 Vol.-%	No Influence
Carbon Monoxide	CO	100 ppm	≤ 40
Methane	CH4	2 Vol.-%	No Influence
Methylpentanone	(CH3)2CHCH2COCH3	500 ppm	No Influence
Phosgene	COCl2	50 ppm	No Influence
Sulfur Dioxide	SO2	20 ppm	≤ 10
Hydrogen Sulfide	H2S	20 ppm	≤ 40
Nitrogen Dioxide	NO2	20 ppm	≤ 2
Nitric Oxide	NO	20 ppm	≤ 20
Tetrachloroethene	CCl2CCl2	100 ppm	No Influence
Toluene	C6H5CH3	1000 ppm	No Influence
Trichloroethene	CHClCCl2	1000 ppm	No Influence
Vinyl Acetate	CH3COOC2H3	30 ppm	≤ 30
Hydrogen	H2	1000 ppm	≤ 5
Xylene	C6H4(CH3)2	0.2 Vol.-%	No Influence

Rental Advanced:	Yes
Rental item or Consumable?:	Rental items
Sensors:	OV
