Multi-gas Detector X-am 8000 with Charging Technology
$31.21*
Available
Key Features and Benefits of the Multi-gas Detector X-am 8000
The Dräger X-am 8000 Set is a compact, robust multi-gas detector designed for clearance measurement and personal protection against gas hazards. It simultaneously measures toxic and combustible gases, vapors, and oxygen, and can be operated in pump or diffusion mode. The set includes the X-am 8000 multi-gas detector, an inductive charging cradle, and a plug-in power supply 12 V/500 mA. It is water and dust protected according to IP68. Desired sensors are selected separately from the available sensor range.
| Device type: | X-am 8000 |
|---|---|
| Rental Advanced: | Yes |
| Rental item or Consumable?: | Rental items |
| Sensors: | Amine, CI2, Cl2, CO, CO2, COCl2, Ex (UEG z.B. CH4), H2, H2O2, H2S, HCN, NH3, NO, NO2, O2, O3, OV, OV-A, PH3, Phosgen, PID, SO2 |
Included in the delivery
All items pictured below are provided with this order. Some components (e.g. sensors) can also be rented if needed.

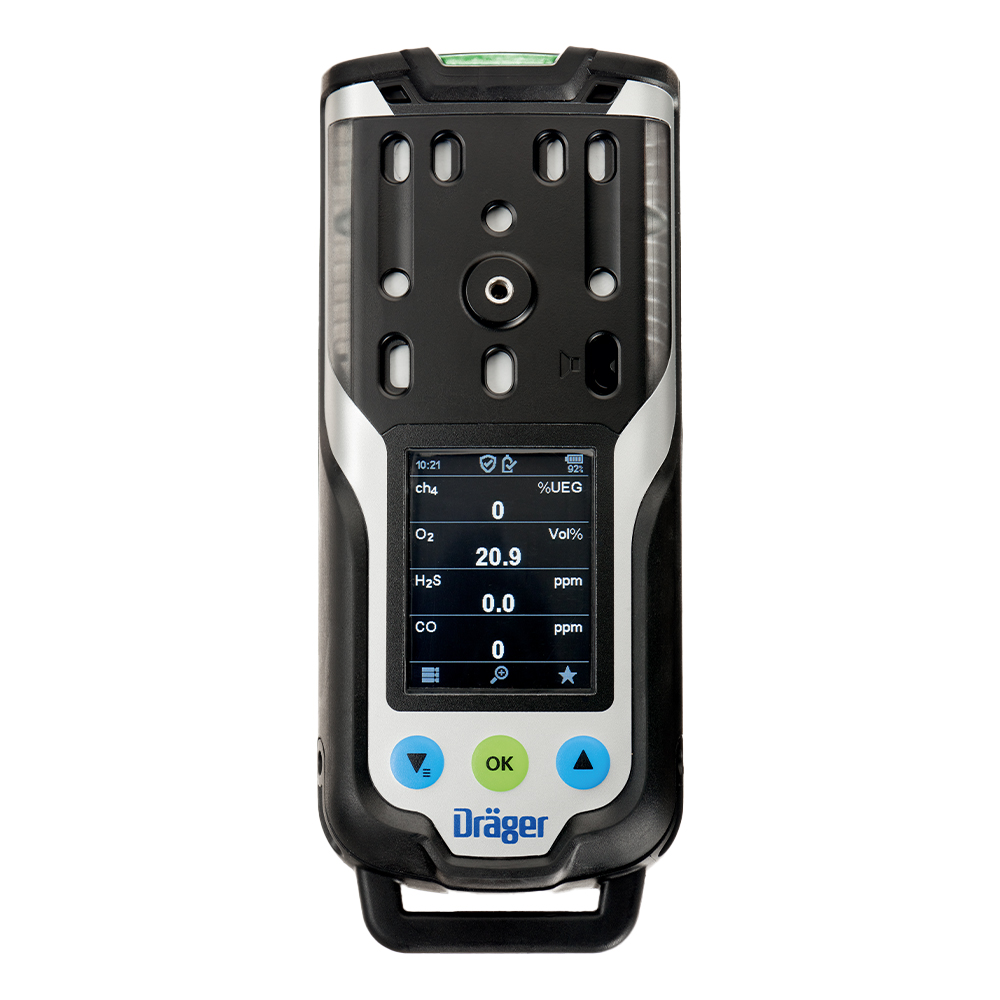

Dräger X-am 8000

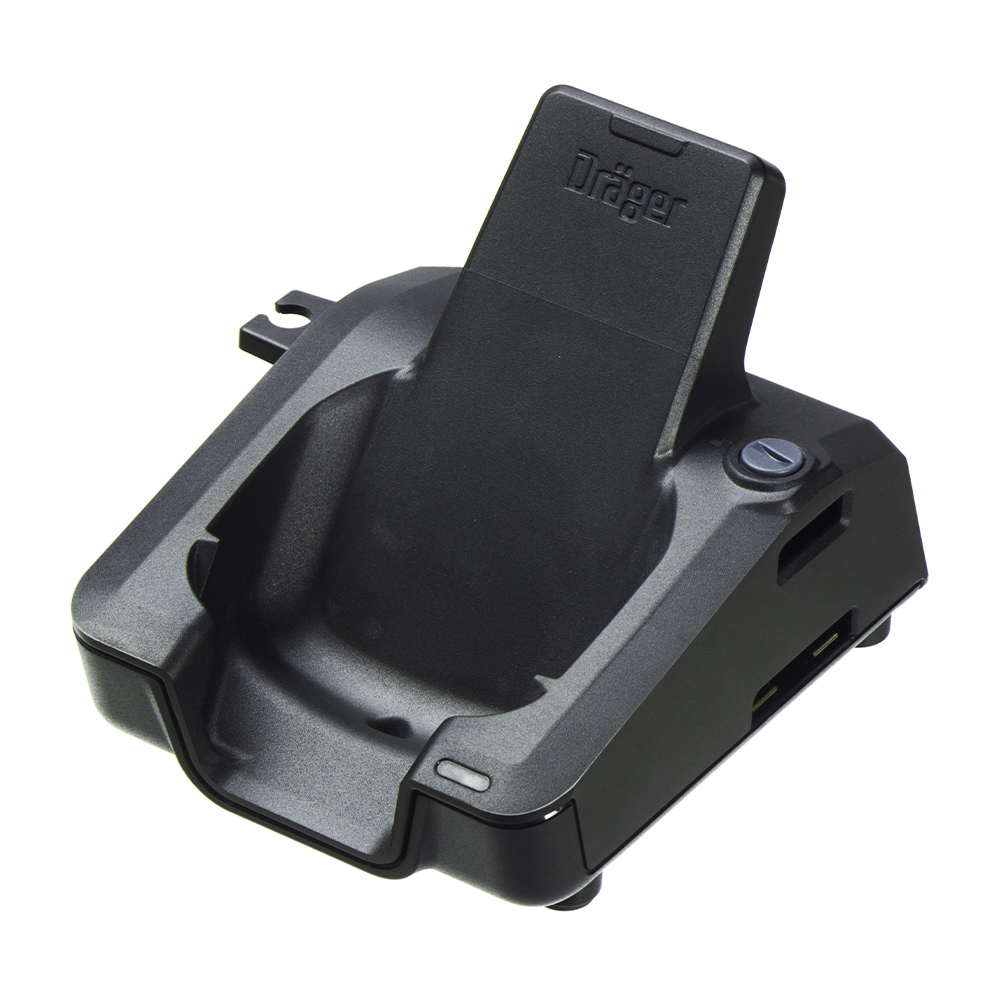

Dräger X-am 8000 inductive charging cradle

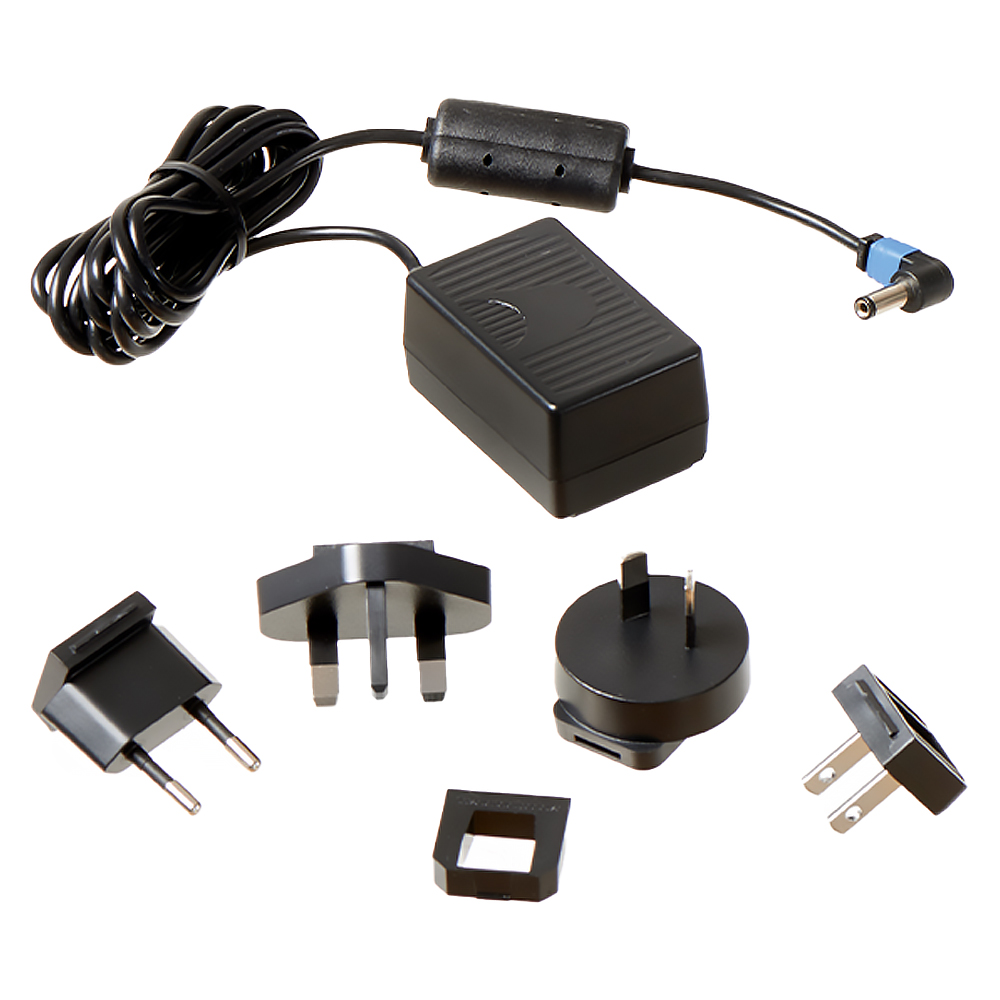

Dräger plug-in power supply 12V/500MA for X-am 8000

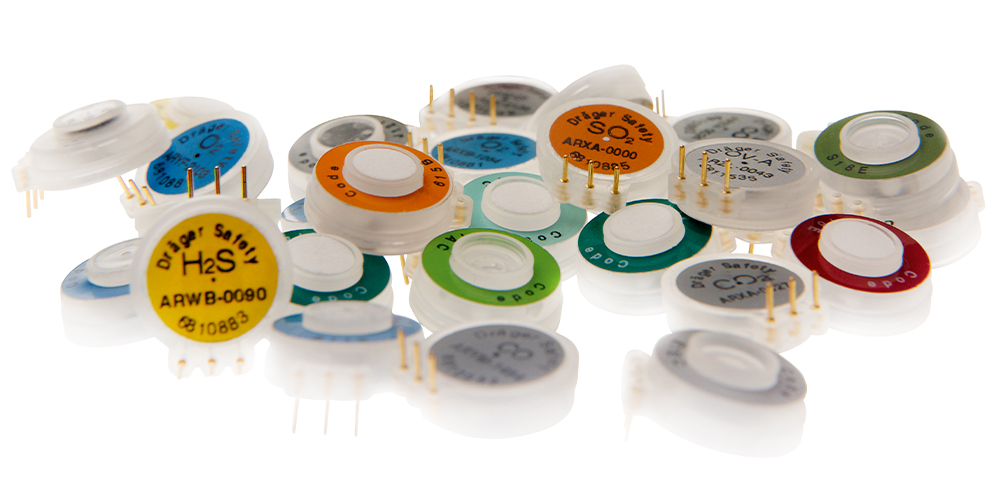

Choose a Sensor to Complete Your Order
Select at least one sensor from the Available Sensors section to place this order.
Choosing the Right Rental Product for Your Application
Selecting the ideal rental device helps ensure you get the best protection and efficiency for your specific work environment. Consider the types of hazards present, the number of gases to be monitored, and how frequently you’ll need the equipment. Our range of rental products offers flexible solutions - whether you require short-term coverage for a one-off project or long-term use on complex sites. Expert consultation and tailored support are available to help you find the right match for your application.
Key Advantages of the X-am 8000
- Simultaneous measurement of 1 to 7 gases, detecting toxic and combustible gases as well as vapours and oxygen for reliable clearance measurement
- Versatile sensor technology combining catalytic, infrared, PID, and electrochemical sensors, with a choice of more than 40 sensors across 5 sensor ports
- Compact, robust housing that is water- and dust-protected according to IP68, with safe gas access from both the top and bottom
- Clear three-colour signalling concept (red for gas alarm, yellow for device-related alarms such as low battery, green for normal operation) in accordance with EN 60079-29-1, EN 45544-1, and EN 50104
- Intuitive one-handed operation via three function keys
- Flexible operation in pump or diffusion mode, with a powerful internal pump connectable to hoses of up to 45 metres for pre-entry measurements
- Typical operating time of more than 24 hours (with CatEx and three EC sensors) and fast charging in around 4 hours after a shift via convenient inductive charging that reduces wear from corrosion and contact problems
- Ex approval for Zone 0, certified according to ATEX, IECEx, and CSA standards
- Specially developed assistant functions guide users step by step through clearance measurement, including automatic calculation of flooding time and full documentation
- Economical fleet management supported by the Dräger X-dock calibration station, with low test gas consumption keeping operating costs to a minimum
Application Areas for Portable Gas Detection
Portable gas detection instruments are subject to very diverse requirements. Different application areas require solutions tailored to the measurement task, which also take into account the respective ambient conditions.
It is generally possible to distinguish between the following application areas:

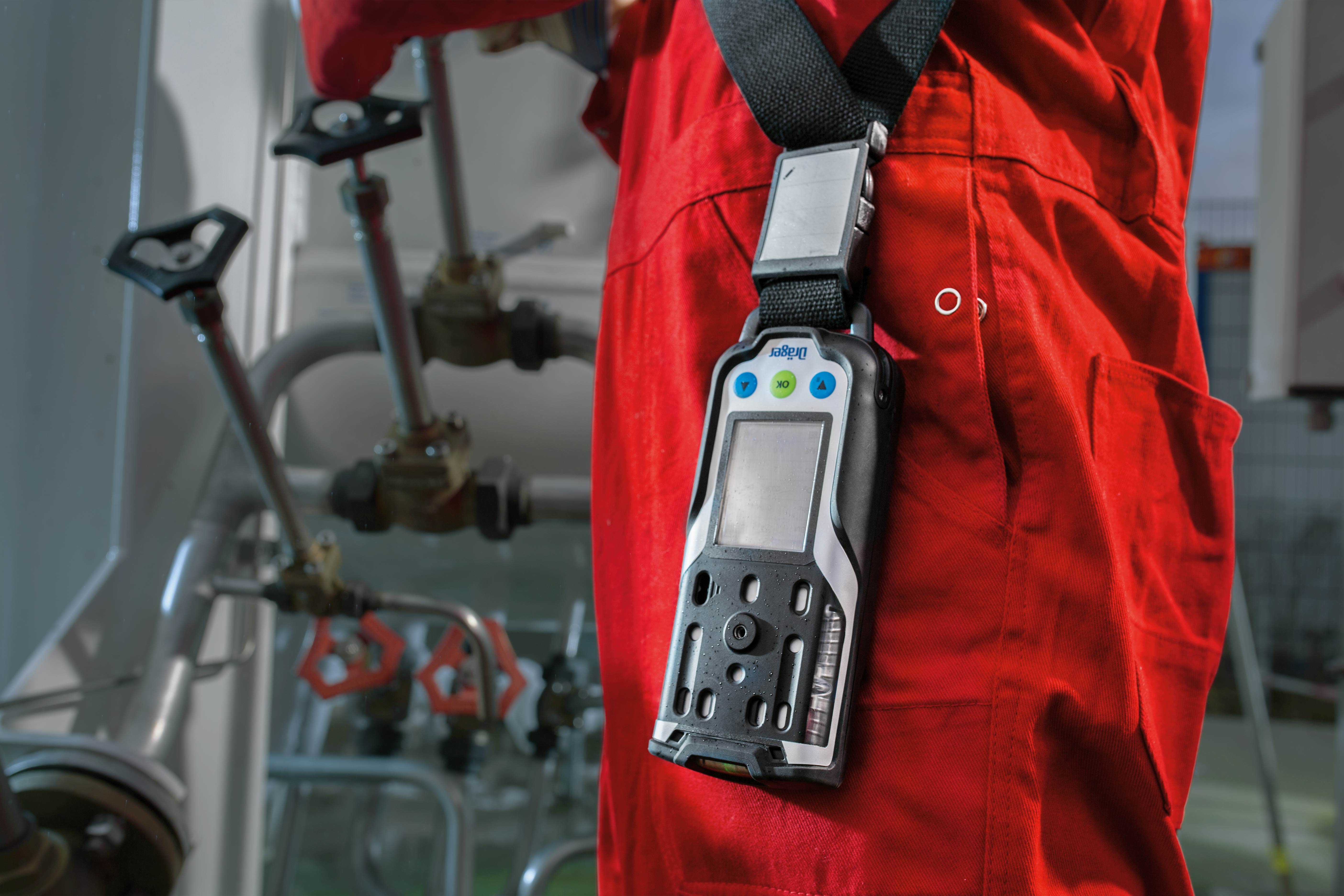

Personal monitoring
These devices are designed to warn the wearer about gas risks in the immediate vicinity. For this reason, they are usually worn on work clothing. The basic requirements that these units therefore have to fulfill are wearing comfort, durability, and reliability. Continuously measuring single-gas and multi-gas instruments are suitable for this kind of work.
Area monitoring
In contrast to the personal gas detector area monitors will be placed at central or critical locations to monitor workspaces optimally and independently from persons. For this, the basic requirements are robustness, stability and excellent alarm awareness (optical and acoustic) as well as a longest possible battery runtime. Increased security level can be achieved by connecting the area monitors to wireless alarm chains and by transferring the measurement values from instrument to instrument as well as to mobile terminals.
Confined space entry
Maintenance and repair work often require people to climb into confined spaces. These areas of work can be especially dangerous because of the lack of space, the lack of ventilation, and the presense or development of hazardous substances. A clearance measurement is required before entry. Multi-gas instruments are used together with corresponding pumps and accessories such as hoses and probes. After a successful measurement where no hazards have been found, the same instruments can be used for continuous personal monitoring while working in the confined space.
Leak detection
Leakages can occur wherever gases or liquids are stored or transported. It is important to identify leakages quickly so that the appropriate measures can be taken to avert harm to people, the environment, and the facility. Detection devices combined with corresponding pumps must be able to respond quickly so as to detect small changes in concentration. High levels of reliability are another minimum requirement for these measuring instruments.
Calibration and Bump Testing Functionality tests
Required function tests before each use are performed using the Dräger test and calibration stations along with the corresponding test gases.
If you wish for a customized alarm threshold configuration and/or an adjustment of the Ex sensor, please specify the alarm thresholds and the target gas calibration at the end of the ordering process in the comment field.
You can also rent bump test equipment for temporary assignments, projects or additional testing tasks. Click here to see our range of products.
Associated Rental Items
Discover related equipment and accessories that complement this gas monitor or offer similar functions, helping you find the right tools for your specific safety needs.
