Area Monitor Dräger X-zone 5500 UK

SRM10246_UK

Rental fee per Day

£23.56*

Select rental period:

We typically deliver your products one business day before the first day of the rental period, so that you can use the equipment on the first day of the rental period.

Area gas monitor hire for shutdowns and confined space perimeters

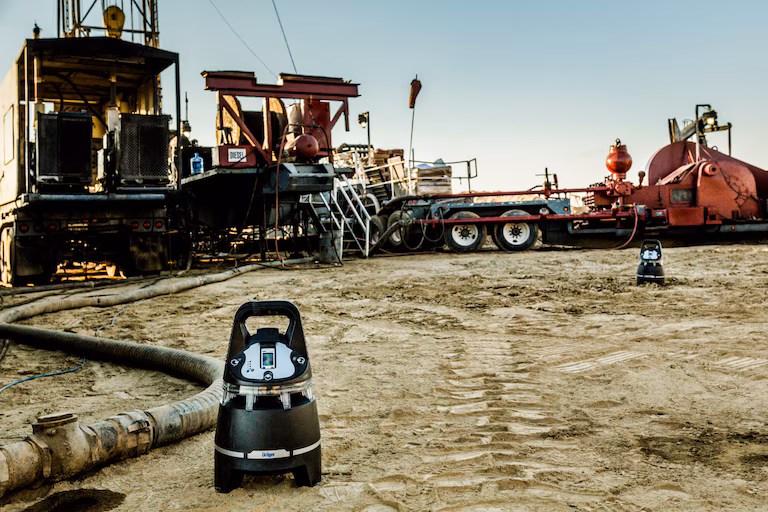

The Dräger X-zone 5500 is an explosion-proof area gas monitor that turns a portable X-am gas detector into a quasi-stationary monitoring station, with a 108 dB alarm and a wireless alarm chain of up to 25 units.

Area gas monitor that amplifies the alarm of the inserted X-am gas detector and signals it through a 360° LED ring, visible from every direction
Up to 25 units connect by radio and/or communication cable – one alarm triggers the whole chain, so the warning reaches everyone on site
Up to 5 days of battery operation, and 120 hours with the 24 Ah battery, with a charging time of under 14 hours
Robust and rugged: IP67 protection for outdoor use in rain, dust and mud

Area monitoring without cabling or commissioning

A Dräger X-am gas detector is placed inside the X-zone, which takes over its readings and amplifies the alarm well beyond what a portable instrument can achieve on its own. The radio link between units establishes itself automatically, so a monitoring chain can be set up and moved by the work crew without a specialist.

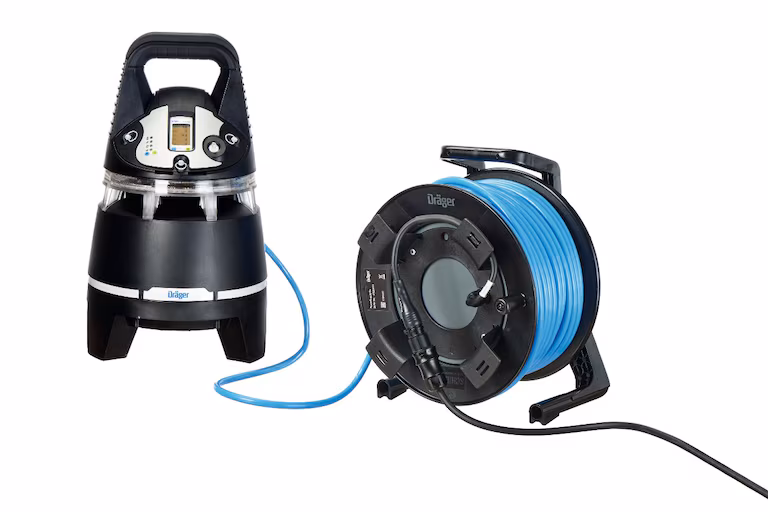

Integrated pump for clearance measurement

The pump version draws samples through up to 30 m of hose at 0.5 l/min, allowing shafts and vessels to be cleared from outside before entry.

Technical data of the X-zone 5500 area gas monitor

Audible alarm 108 dB(A) at 1 m, 120 dB(A) at 30 cm
360° LED alarm ring
Up to 25 units by radio and/or communication cable
Battery operation up to 5 days, 120 hours with 24 Ah, charging time under 14 hours
IP67 protection
Pump version: up to 30 m hose at 0.5 l/min
Used together with the Dräger X-am 5000, X-am 5100, X-am 5600 and X-am 5800

Typical applications for area gas monitor hire

Quasi-stationary monitoring during shutdowns, turnarounds and maintenance
Perimeter monitoring around confined space entries
Hot work permits, tank farms and refinery areas
Temporary work sites without fixed gas detection

X-zone 5500 or X-zone 5800?

Both units offer the same alarm amplification and wireless chain. The X-zone 5800 additionally supports a permanent intrinsically safe external power supply, which suits deployments running continuously for weeks.

The following items must be rented in addition

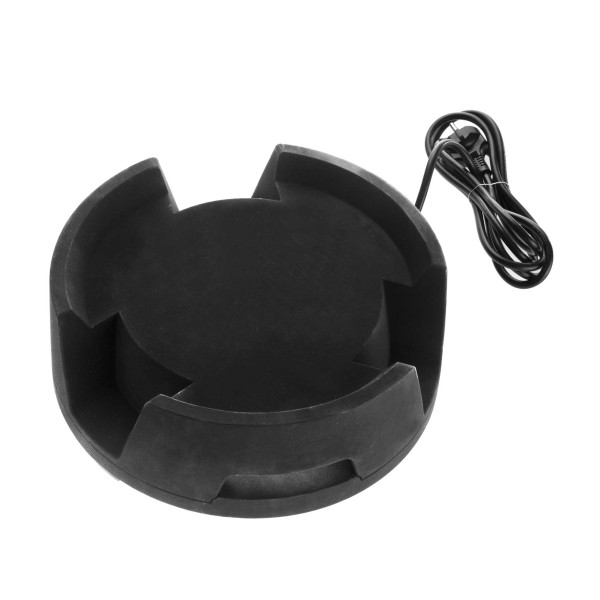

8322080: Dräger X-zone inductive charger Europe

Carry out the prescribed function tests before every use with Dräger test and calibration stations and the corresponding test gases.
