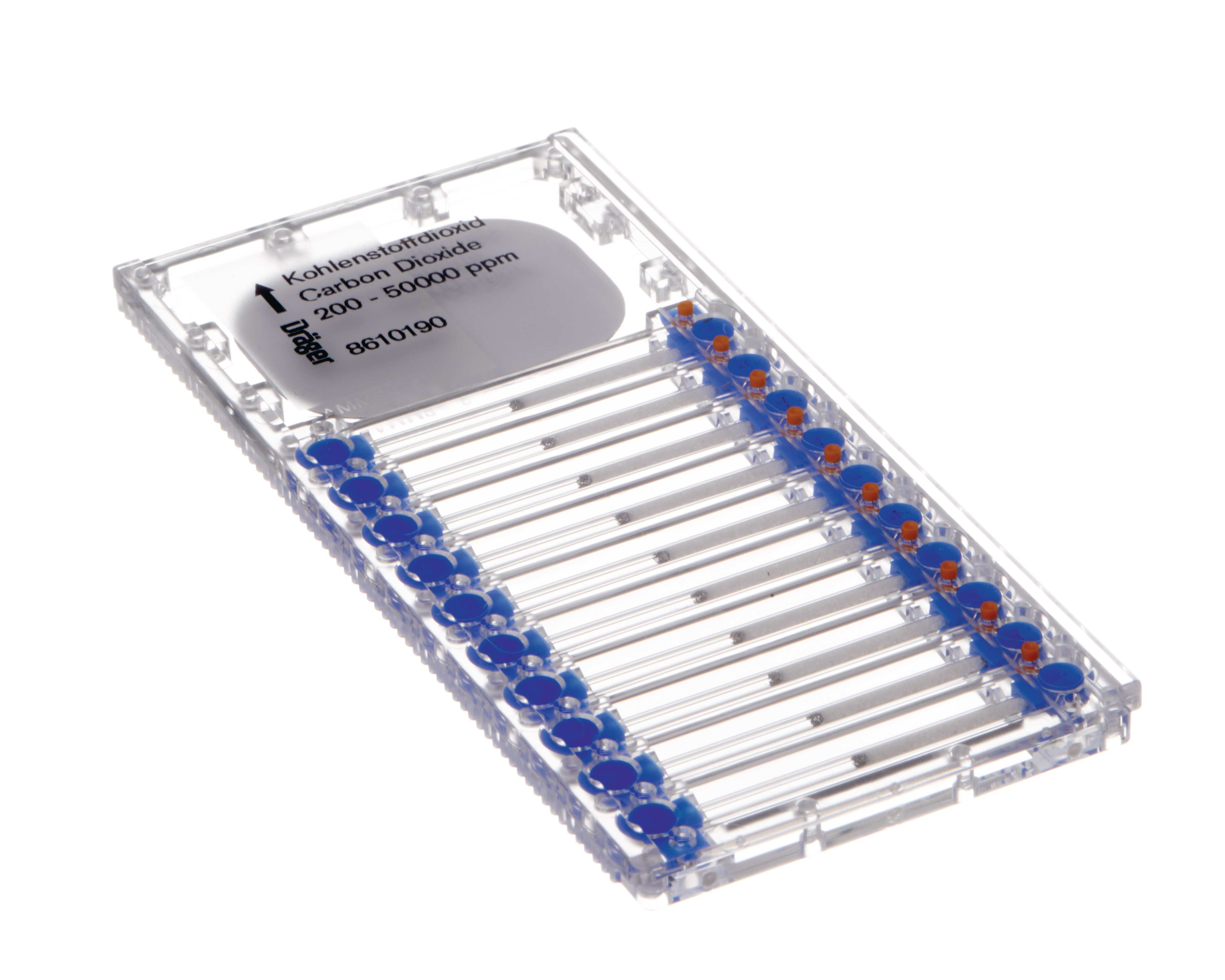

Dräger MicroTubes Carbon Dioxide 200-50,000 ppm
8610190_UK
£187.50*
MicroTubes for carbon dioxide measurement with the X-act 7000
Dräger MicroTubes for carbon dioxide (CO₂) are short-term measurement tubes for the Dräger X-act 7000 analyser, covering 200 to 50,000 ppm. CO₂ is heavier than air, accumulates in low-lying spaces and displaces oxygen without warning.
- Measuring range 200 to 50,000 ppm – matched to the concentrations that matter when you assess carbon dioxide exposure or trace a leak.
- Read out automatically by the X-act 7000 – the analyser evaluates the tube and shows the concentration directly, so there is no colour scale to judge by eye and no operator interpretation to defend afterwards.
- Ready to use straight from the box – no calibration, no warm-up time and no sensor to replace; each tube carries its own batch data for the instrument to read.
- A documented spot measurement in minutes – ideal where a permanently installed monitor would be disproportionate but a defensible reading is still needed.
Measured gas and detection range
- Carbon dioxide (CO₂)
Technical data of these MicroTubes
- Measuring range: 200 to 50,000 ppm
- Measurement time: 2 to 120 s
- Standard deviation: ± 25 %
- Permissible ambient temperature: 0 to 30 °C
- Permissible humidity: 1 to 30 mg/L
Typical applications for these MicroTubes
- Breweries and beverage plants, greenhouses, cellars, silos and fire-suppression rooms.
Instrument compatible with these MicroTubes
- Dräger X-act 7000
