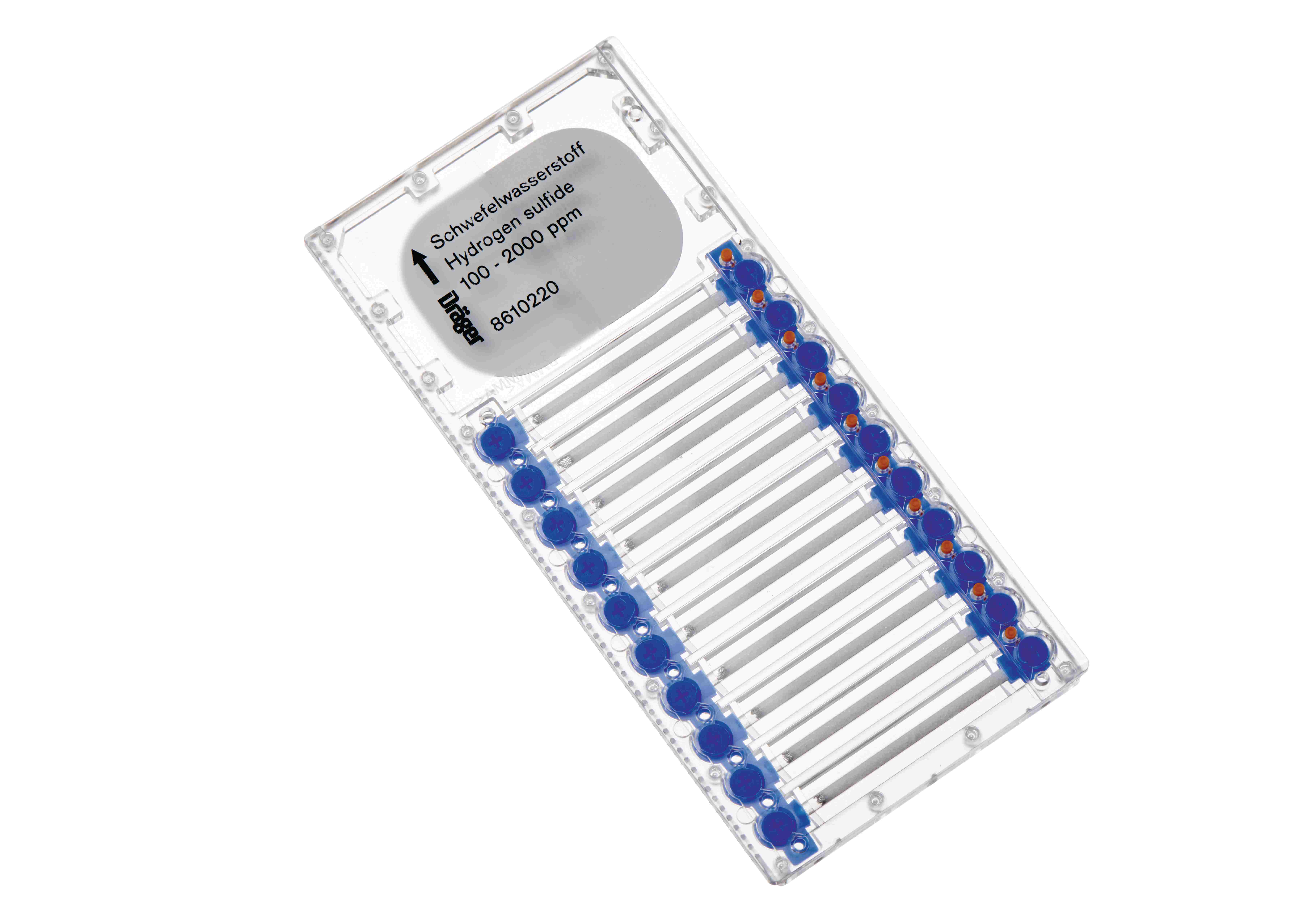

Dräger MicroTubes Hydrogen Sulphide 100-2,000 ppm
8610220_UK
£110.00*
MicroTubes for hydrogen sulphide measurement, 100 to 2,000 ppm
Dräger MicroTubes for hydrogen sulphide (H₂S) are short-term measurement tubes for the Dräger X-act 7000 analyser, covering 100 to 2,000 ppm. The high range is required to quantify sour gas streams and confirm scrubber performance.
- Measuring range 100 to 2,000 ppm – matched to the concentrations that matter when you assess hydrogen sulphide exposure or trace a leak.
- Read out automatically by the X-act 7000 – the analyser evaluates the tube and shows the concentration directly, so there is no colour scale to judge by eye and no operator interpretation to defend afterwards.
- Ready to use straight from the box – no calibration, no warm-up time and no sensor to replace; each tube carries its own batch data for the instrument to read.
- A documented spot measurement in minutes – ideal where a permanently installed monitor would be disproportionate but a defensible reading is still needed.
Measured gas and detection range
- Hydrogen sulphide (H₂S)
Technical data of these MicroTubes
- Measuring range: 100 to 2000 ppm
- Measurement time: 15 to 180 s
- Standard deviation: ± 10 %
- Permissible ambient temperature: 10 to 40 °C
- Permissible humidity: 1 to 40 mg/L
Typical applications for these MicroTubes
- Sour gas production, refineries, digesters and biogas upgrading.
Instrument compatible with these MicroTubes
- Dräger X-act 7000
