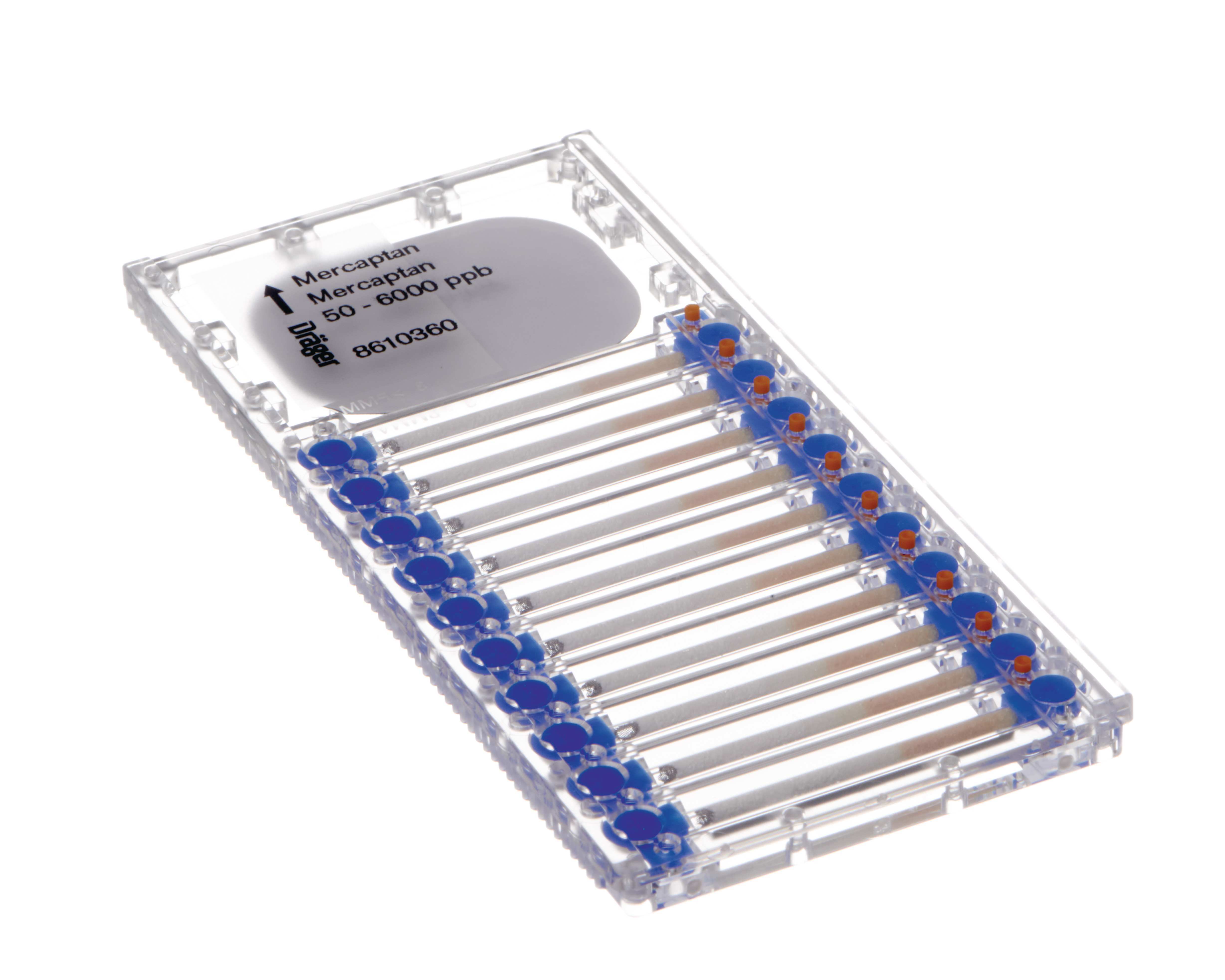

Dräger MicroTubes Mercaptan 50-6,000 ppb
8610360_UK
£146.61*
MicroTubes for mercaptan measurement with the X-act 7000
Dräger MicroTubes for mercaptans (RSH) are short-term measurement tubes for the Dräger X-act 7000 analyser, covering 50 to 6,000 ppb. Odorant levels must be verified so that a gas escape remains detectable by smell.
- Measuring range 50 to 6,000 ppb – matched to the concentrations that matter when you assess mercaptans exposure or trace a leak.
- Read out automatically by the X-act 7000 – the analyser evaluates the tube and shows the concentration directly, so there is no colour scale to judge by eye and no operator interpretation to defend afterwards.
- Ready to use straight from the box – no calibration, no warm-up time and no sensor to replace; each tube carries its own batch data for the instrument to read.
- A documented spot measurement in minutes – ideal where a permanently installed monitor would be disproportionate but a defensible reading is still needed.
Measured gas and detection range
- Mercaptans (RSH)
Technical data of these MicroTubes
- Measuring range: 50 to 6000 ppb
- Measurement time: 15 to 360 s
- Standard deviation: ± 25 %
- Permissible ambient temperature: 10 to 40 °C
- Permissible humidity: 1 to 40 mg/L
Typical applications for these MicroTubes
- Natural gas odorisation, refineries, pulp mills and gas distribution networks.
Instrument compatible with these MicroTubes
- Dräger X-act 7000
