Dräger Multi Gas Detector Pump UK
£2.78*
Gas detector pump hire for clearance measurement up to 45 m
The Dräger X-am Pump turns your X-am gas detector into a sampling instrument, enabling clearance measurement of tanks, shafts and other hard-to-reach spaces from up to 45 metres away.
- X-am pump for the Dräger X-am® 2500/2800 and X-am® 5000/5600/5800 gas detectors
- Sampling distance up to 45 m in ducts and tank systems – the atmosphere is assessed before anyone goes in
- Starts automatically as soon as it is clipped to a switched-on instrument, and switching between pump and diffusion mode takes seconds
- All displays and controls run through the X-am screen, so there is no second instrument to learn
Technical data of the X-am sampling pump
- Flow rate 0.4 l/min, sampling distance up to 45 m
- Optimised for 3 mm hoses; adapters available for 5 mm hoses
- Explosion protection approval for Zone 0
- IP67 dust and water protection, reliable operation down to −40 °C
- Height 17.5 cm, weight approx. 200 g, extends the instrument by less than 10 cm
- Charging via micro-USB with LED charge indicator, full charge in approx. 6 hours
- Up to 20 hours of continuous operation, or roughly three working weeks at eight measurements per day
- Potted battery, resistant to drops and impacts
Separate records for clearance measurement and personal monitoring
Pump runtime, charge state, battery warnings and the flow alarm are shown on the X-am and stored in the datalogger. Clearance measurement results can therefore be kept separate from personal monitoring records – which matters when a permit has to be documented.
Scope of delivery
- Dräger X-am Pump
- USB cable (no mains power supply included)
Typical applications for sampling pump hire

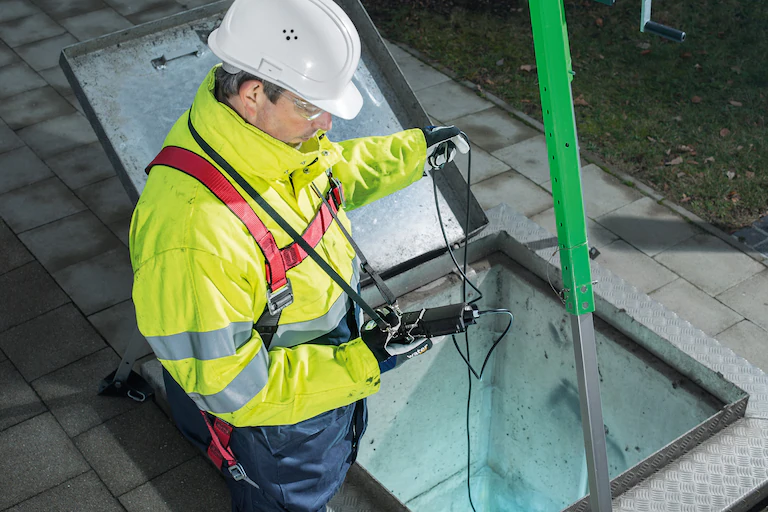

- Clearance measurement before entering tanks, vessels, shafts and confined spaces
- Leak detection in plant areas
- Sewer, water and utility work
- Measurement in ducts and tank systems at distance
Use with the Dräger X-act 7000 requires the separately available Coupler X-act 7000 (8610810).
