Test and Calibration Station Dräger X-dock 6300 UK
SRM09203_UK
Rental fee
per
Day
£43.74*
Gas detector calibration station hire with 3 test gas inlets

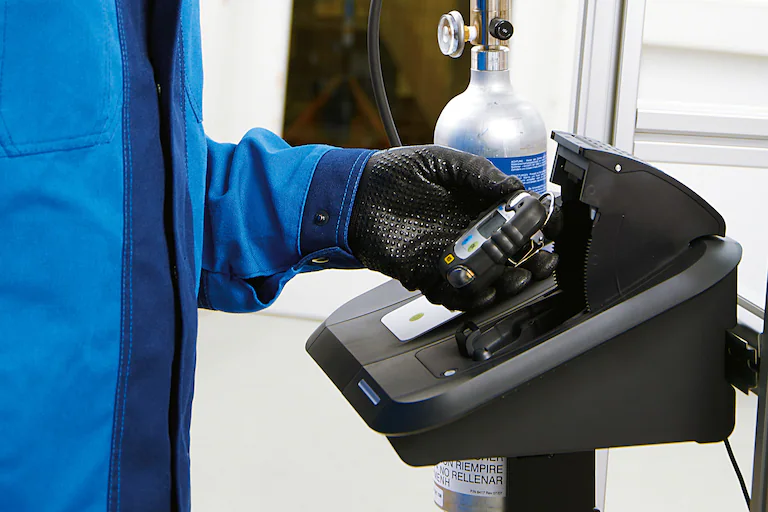

The Dräger X-dock 6300 is an automatic test and calibration station with three test gas connections that bump tests and adjusts your gas detectors in under 10 seconds – without a PC.
- Test and calibration station that recognises every sensor combination automatically, then tests and adjusts the instrument once the required test gases are connected
- Bump test in under 10 seconds for standard gases, with a reduced flow of 300 ml/min per module to cut test gas consumption significantly
- Standalone operation via the integrated touchscreen – no PC required for configuration or daily use
- Three test gas connections and three configurable test routines
- Expandable to a maximum of 10 modules for X-am and/or Pac instruments
What the calibration station tests automatically
- Bump test and adjustment of all fitted sensors
- Automatic leak test
- Automatic test of the alarm elements
- Verification of sensor response times
Every result is written to the database automatically. With a compatible printer, calibration and test certificates can be printed directly at the station, in line with T021/T023 (BG RCI) and the relevant EN standards. All Dräger test gas cylinders are already stored in the database.
Charging function, seal cassette and 12 V vehicle operation
- Optional charging function for X-am 1/2/5x00 and X-am 3500/8000
- Replaceable seal cassette
- 12 V operation possible, for example in a vehicle
- Single-pump valve concept, which reduces wear and switches test gases and optional compressed air
- Cloud fleet management via Dräger Gas Detection Connect, including automatic station updates and current device firmware
Typical applications for calibration station hire
- Daily function testing of a fleet of portable gas detectors
- Documented calibration for audits and inspections
- Central test station in the equipment store or workshop
- Mobile testing from a vehicle via 12 V operation
The following items must be rented in addition
- Power supply 100–240 V AC / 6.25 A

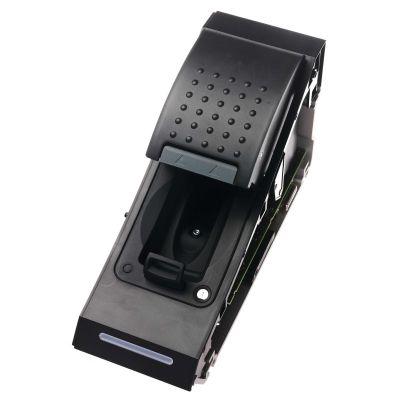

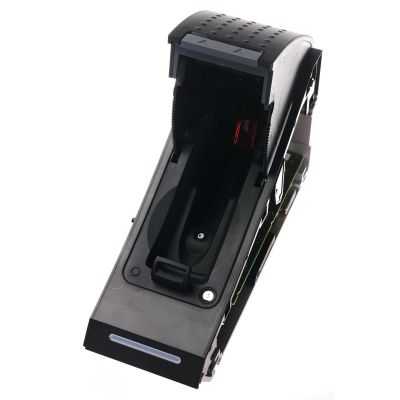

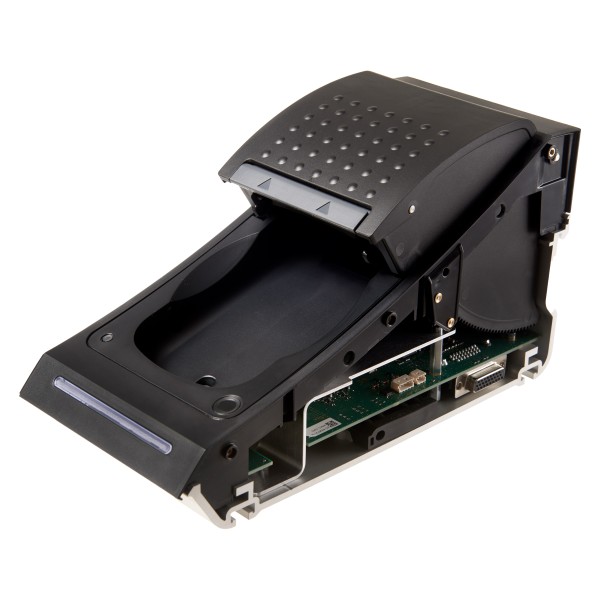

- One X-dock module per instrument type – see X-dock module X-am 125+, X-am 8000 and Pac
