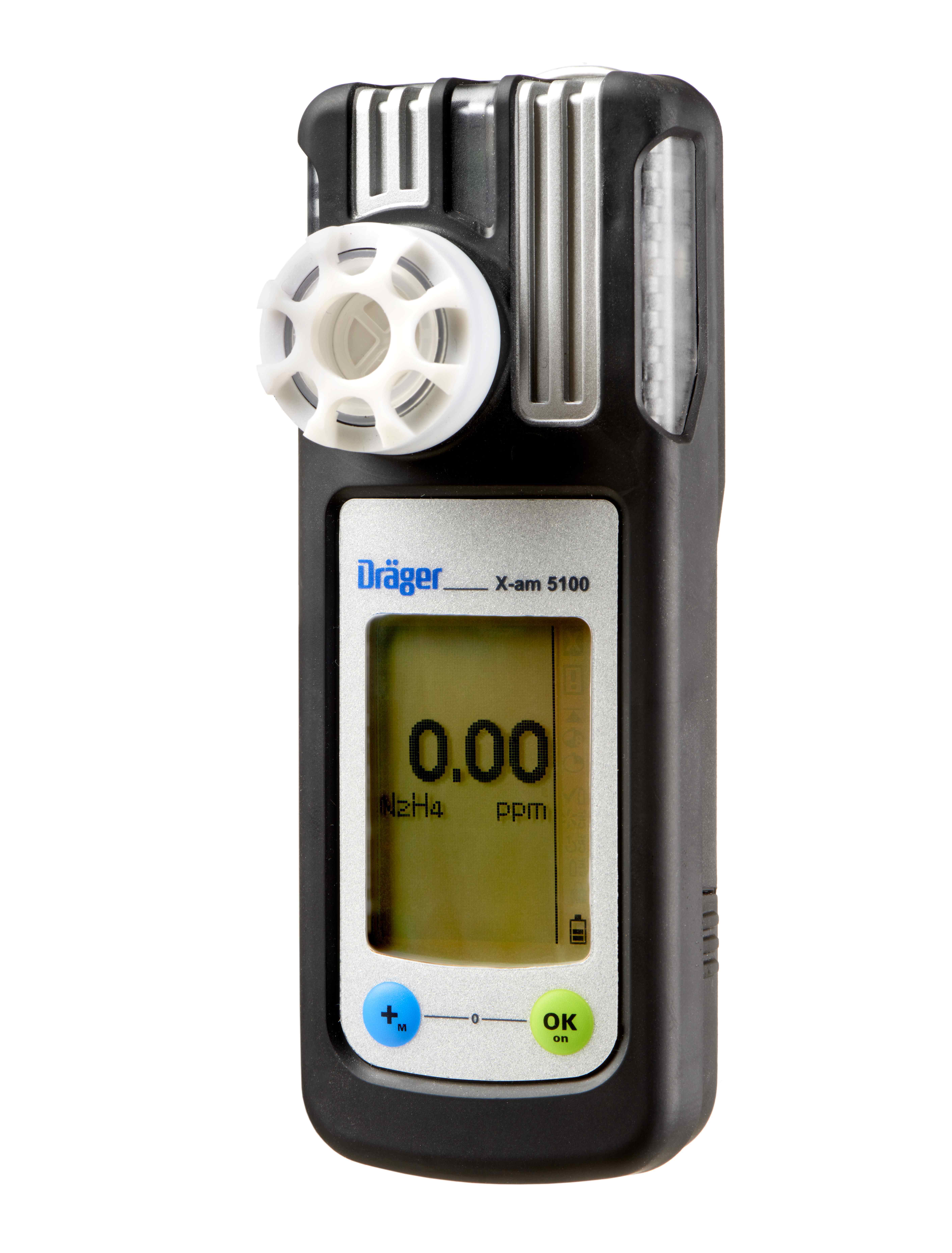

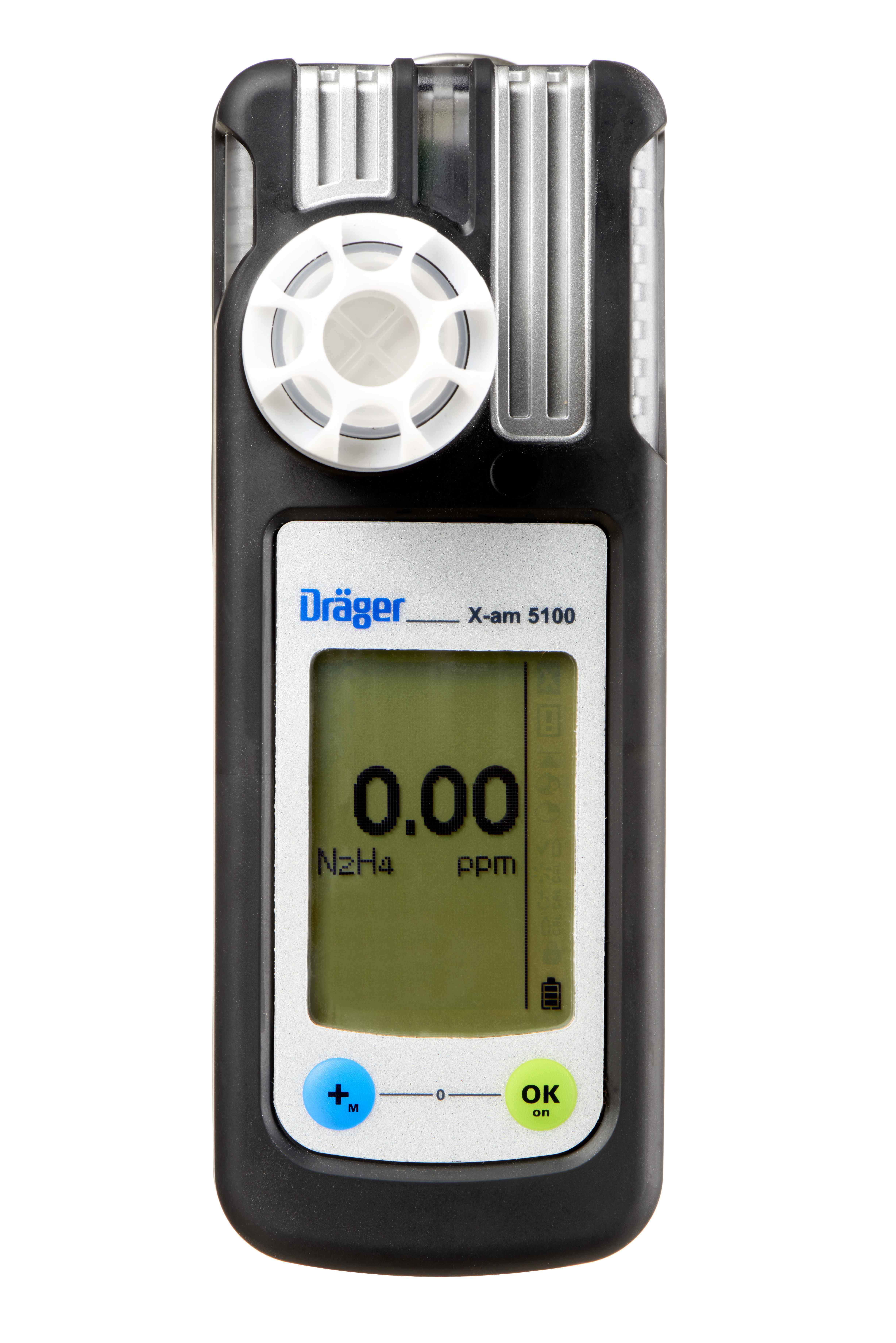

Dräger X-am 5100 Single Gas Detector

SRM08433_UK

Rental fee per Day

£16.95*

Select rental period:

We typically deliver your products one business day before the first day of the rental period, so that you can use the equipment on the first day of the rental period.

Important note: This rental product is only available if you rent 1 to %1% sensors as accessories at the same time.

The Dräger X-am 5100 is a portable single gas detector for the reliable measurement of hydrogen fluoride, hydrogen chloride, hydrogen peroxide or hydrazine – substances that conventional sensors struggle to detect.

Single gas detector Dräger X-am® 5100 with electrochemical sensor and reference electrode for stable, drift-free readings
Detects reactive and easily adsorbed gases that are difficult to measure with standard sensor technology
Personal monitoring and leak detection in chemical plants, semiconductor production, aerospace and sterilisation processes

Available sensors:

DrägerSensor XS EC HF/HCl – hydrogen fluoride and hydrogen chloride
DrägerSensor XS EC H₂O₂ – hydrogen peroxide
DrägerSensor XS EC Hydrazine – hydrazine

Key features:

Optical alarm, audible alarm of approx. 90 dB(A) and vibration alarm
ATEX and IECEx approved for Zone 0, 1 and 2
Exceptionally long operating time: up to approx. 180 hours with alkaline batteries, approx. 150 hours with the NiMH power pack
IP54 protection with sensor fitted
Compact and light: 130 x 48 x 61 mm, approx. 220 to 250 g
Integrated datalogger, supplied with manufacturer's and calibration certificate

The following items must be rented in addition:

Charging module X-am 1/2/5000
Power supply single unit X-am 1/2/5/8000

Carry out the prescribed function tests before every use with Dräger test and calibration stations and the corresponding test gases.
