Dräger X-am 5000 Multi Gas Detector
SRM04207_UK
Rental fee
per
Day
£9.43*

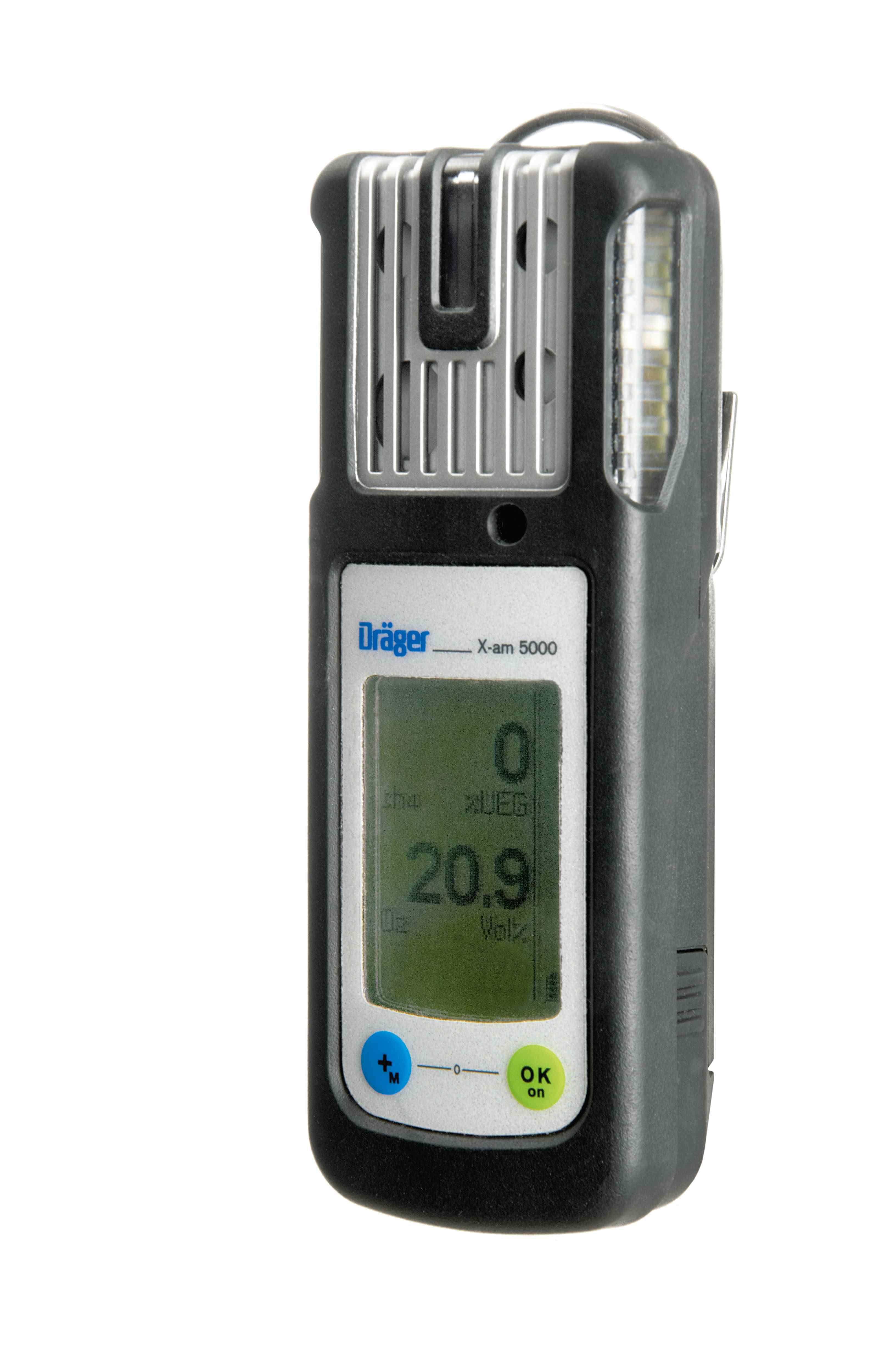

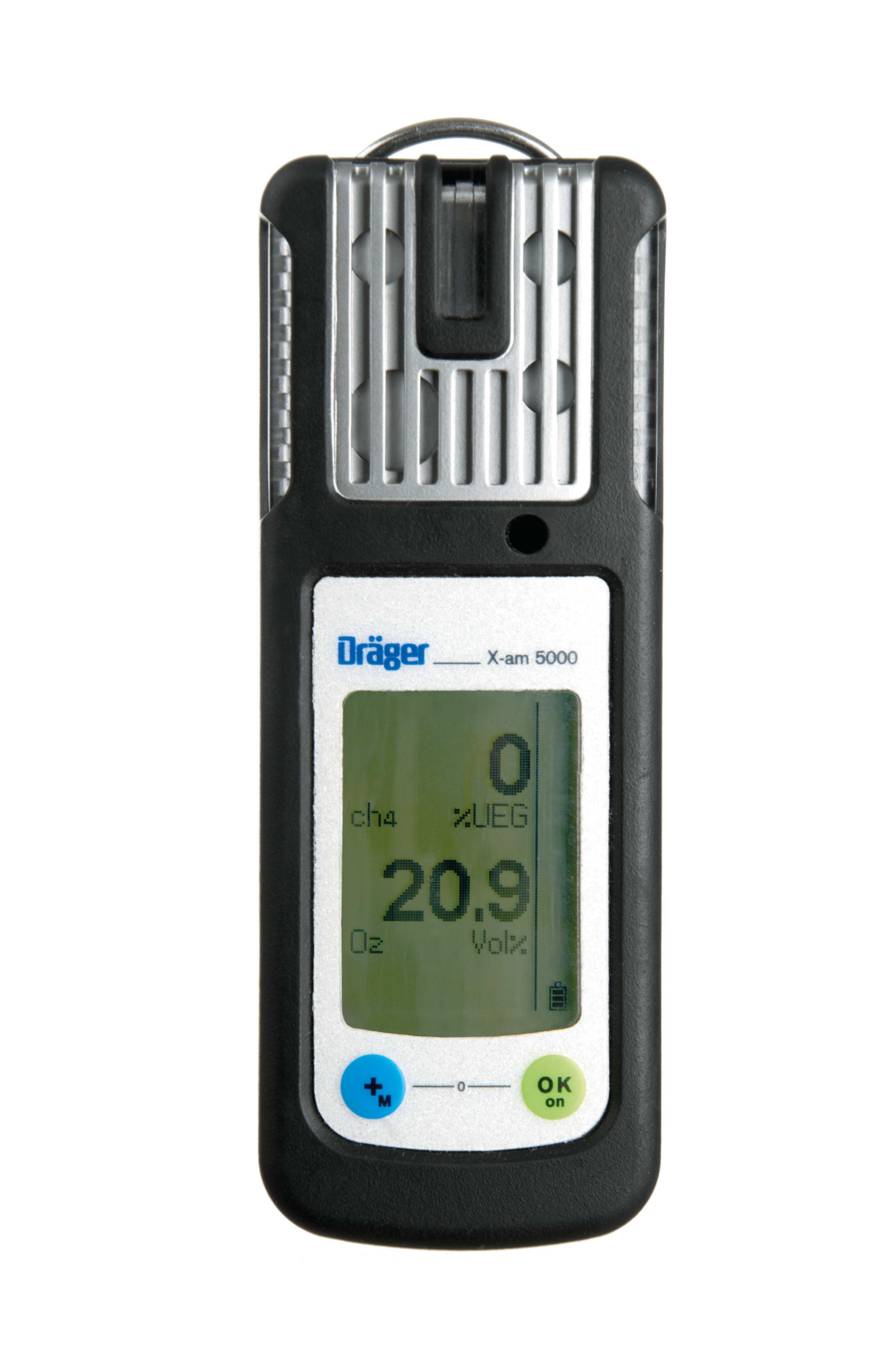

The Dräger Multi Gas Monitor 5000 is a portable 5 gas detector for personal protection, monitoring up to five flammable and toxic gases plus oxygen in ambient air simultaneously.
- Gas detector Dräger X-am® 5000 with exchangeable sensors for 1 to 5 measuring channels
- Continuous workplace monitoring and clearance measurement before entering confined spaces
- Suitable for use in explosion-hazard areas, hot work permits and rescue operations
Available sensors and measuring ranges:
| Sensor | Measuring range | Additional information |
|---|---|---|
| Ex/LEL | 0 to 100 %LEL | CatEx 125 PR / PR Gas; methane additionally 0 to 100 vol.% |
| O2 | 0 to 25 vol.%, 0 to 30 vol.% or 0 to 100 vol.% | |
| CO | 0 to 2,000 ppm | CO HC: 0 to 10,000 ppm; H2-compensated version available |
| H2S | 0 to 200 ppm | H2S HC: 0 to 1,000 ppm |
| CO2 | 0 to 5 vol.% | |
| NO2 | 0 to 50 ppm | |
| SO2 | 0 to 100 ppm | |
| NO | 0 to 200 ppm | |
| NH3 | 0 to 300 ppm | |
| Cl2 | 0 to 20 ppm | |
| PH3 | 0 to 20 ppm | |
| HCN | 0 to 50 ppm | |
| O3 | 0 to 10 ppm |
Additional sensors are available on request.
Key features:
- Optical alarm, multi-tone audible alarm of approx. 90 dB(A) at 30 cm and vibration alarm
- IP67 protection, approved for Zone 0, 1 and 2, gas groups IIA, IIB, IIC, temperature class T3 or T4
- ATEX and IECEx approved
- Approx. 12 hours of operation with alkaline batteries or the NiMH power pack
- Compact and light: 130 x 48 x 44 mm, approx. 220 to 250 g
Typical applications:
- Personal gas monitoring at the workplace
- Clearance measurement before entering tanks, vessels, shafts and confined spaces
- Work in explosion-hazard areas and hot work permits
- Work at height, fire brigade and rescue services
The following items must be rented in addition:
- Charging module X-am 1/2/5000
- Power supply single unit X-am 1/2/5/8000
Carry out the prescribed function tests before every use with Dräger test and calibration stations and the corresponding test gases.
