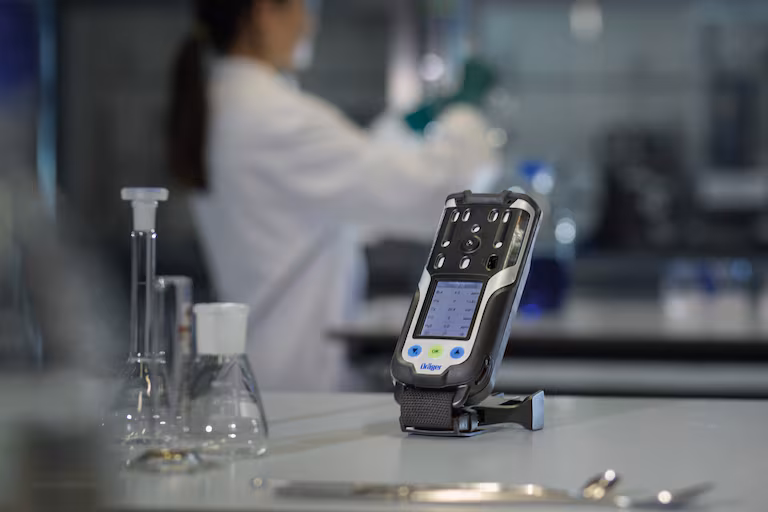

Dräger X-am 8000 Multi Gas Detector
£15.09*
Multi gas detector hire for confined space entry and leak detection
The Dräger X-am 8000 is a portable 7 gas detector with integrated pump, displaying up to seven flammable, toxic and oxygen readings simultaneously for clearance measurement and leak detection.
- 7 gas detector with five sensor slots, covering PID, infrared, catalytic (CatEx) and electrochemical sensor technology in a single instrument
- Integrated pump for clearance measurement and leak detection with a sampling distance of up to 45 metres
- Simple operation via three keys and a dynamic navigation bar, so readings stay legible even with gloves on
- Robust and reliable: IP68 protection and up to 24 hours of operating time
Gas detection with up to seven measuring channels
Five sensor slots accept four different sensor technologies, which makes the X-am 8000 the most flexible instrument in the X-am range:
- PID sensors for volatile organic compounds (VOCs)
- Infrared sensors for hydrocarbons and CO2, measuring reliably even in the absence of oxygen
- Catalytic CatEx sensors for flammable gases and vapours
- Electrochemical sensors for oxygen and toxic gases
This unit is supplied as the X-am 8000 Basic Pump version. Sensor dampers and sensor placeholders for CatEx and IR are fitted at the factory; the sensor configuration is defined for your rental order.

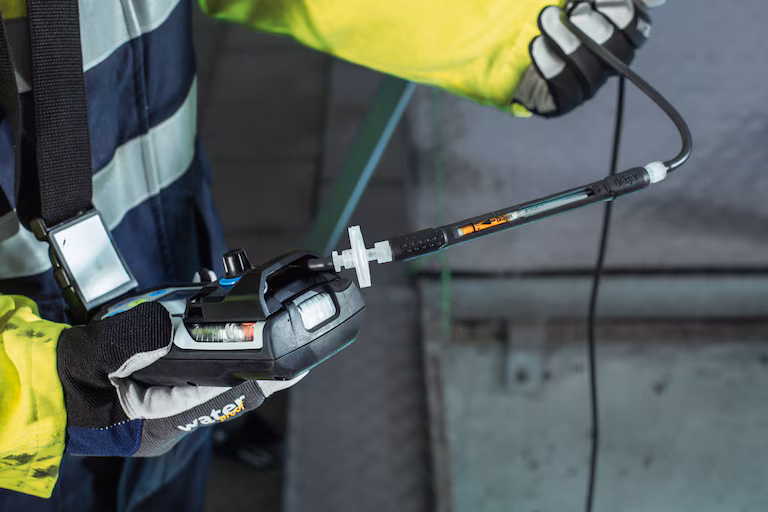

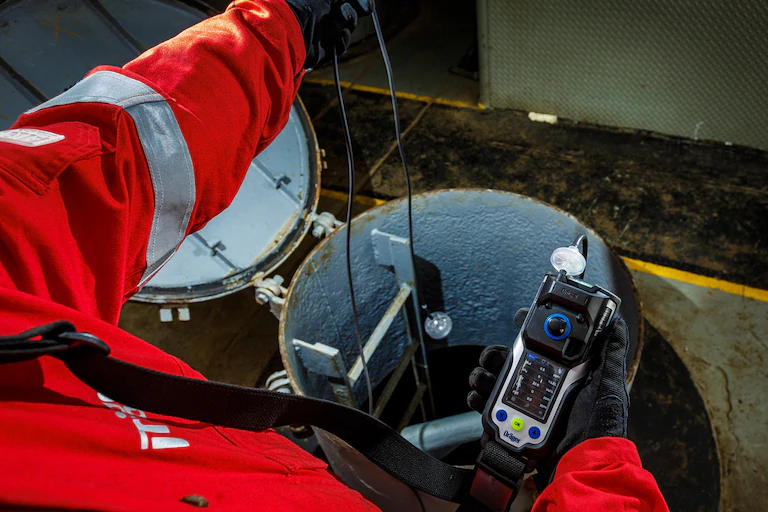

Integrated pump for clearance measurement before entry
The built-in pump draws samples from up to 45 metres away, allowing tanks, shafts, vessels and ducts to be cleared before anyone enters. Switching between pump and diffusion mode takes seconds, so one instrument covers both clearance measurement and personal monitoring throughout the shift.
Technical data of the X-am 8000 gas detector
- Up to 7 gases displayed simultaneously, 5 sensor slots
- IP68 protection
- ATEX and IECEx approved for Zone 0
- Operating time approx. 24 hours
- Audible alarm approx. 100 dB(A), plus optical and vibration alarm
- Weight 495 g without pump, 550 g with pump
- Dimensions 179 x 77 x 42 mm
- Maximum sampling distance 45 m
Typical applications for multi gas detector hire
- Clearance measurement before entering tanks, vessels, shafts and confined spaces
- Leak detection in plant areas and pipework
- Personal gas monitoring at the workplace
- VOC measurement in chemical and petrochemical plants
- Shutdown, maintenance and hot work permits
The following items must be rented in addition
- Inductive charging module X-am 8000
- Power supply single unit X-am 1/2/5/8000
- Telescopic probe
Carry out the prescribed function tests before every use with Dräger test and calibration stations and the corresponding test gases.
